Layout
The overhead flight attendant rest contains the following:
• an entrance and common area containing:
• lights master switch
• area lighting switches
• horn shut off switch
• temperature control panel
• interphone handset/light
• passenger information signs
• emergency horn
• smoke detectors (2)
• emergency equipment
• coat hooks, mirror, stowage

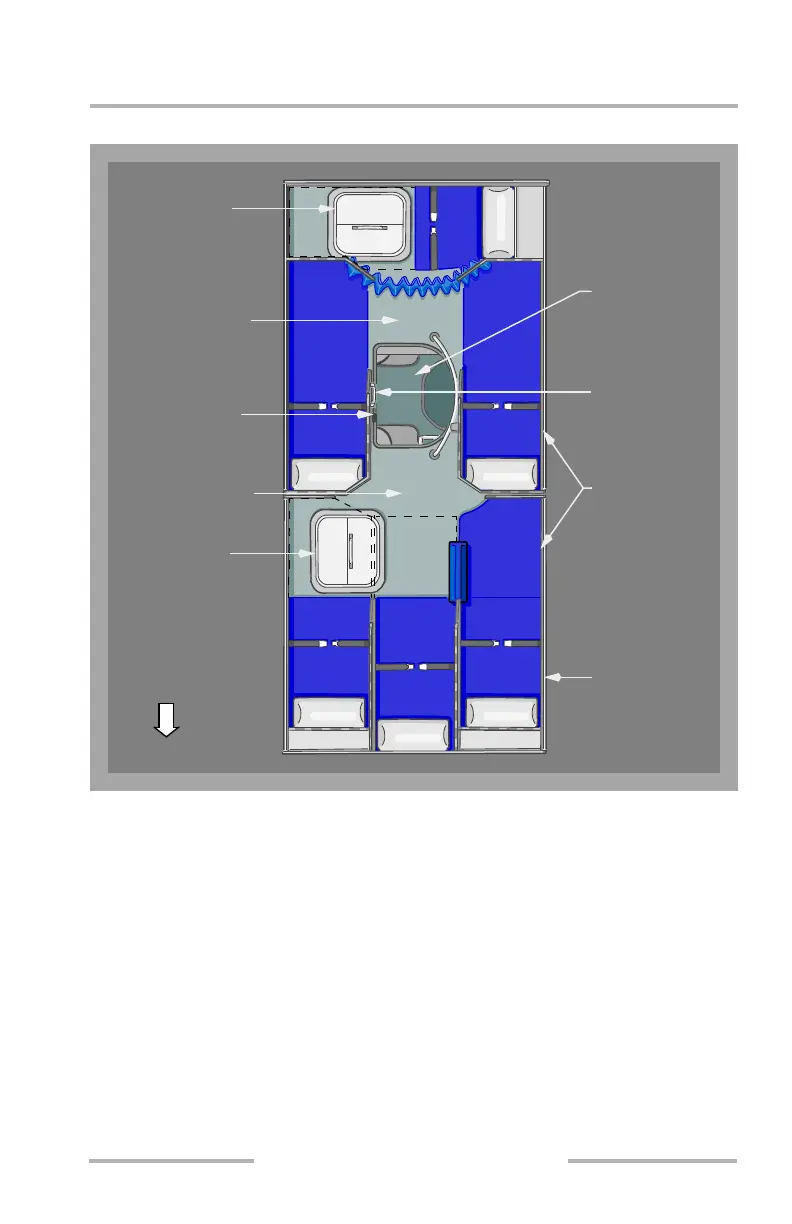

FWD
Area Control
Emergency
Emergency
Egress Hatch
Egress Hatch
Panel and
Attendant
Bunks (x 6)
Entrance
Enclosure
and Stairs
Common Area
Common Area
Oxygen/Exit/
Lavatory Signs
Fasten Seat Belt/
Bunk
Control
Panels (x 6)
Handset
