MFD Communications Functions
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 5.40.11

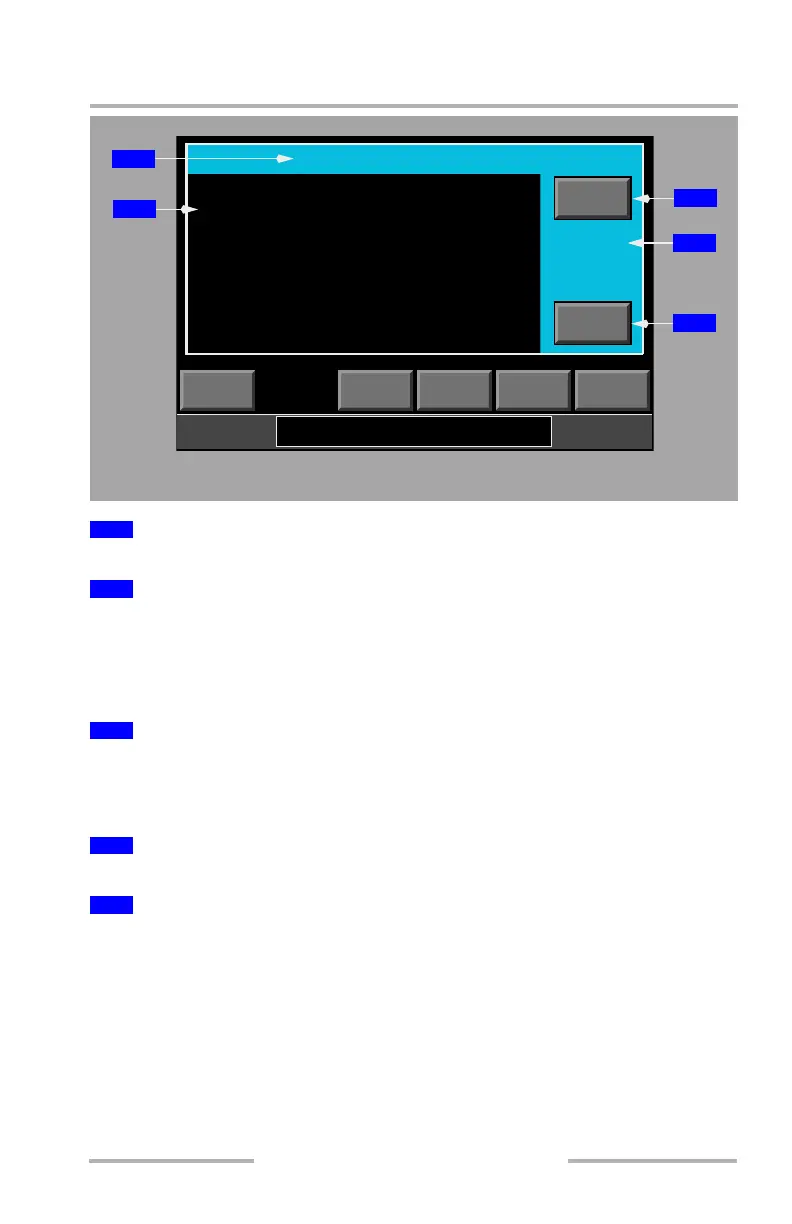

Displays help window message title.
Displays text message information to:
• help correct data entry errors
• provide FMC alerting messages
• provide FMC communications messages
Push –
• removes help window for current message from display
• displays next help message (if one exists)
Displays total number of messages in help window queue.
Displays when loadable ATC RTE CLEARANCE UPLINK message is received.
Push –
• clears ATC message
• enters modified route into FMC for execution
• displays next help message (if one exists)
COMM Help Messages
COMM help messages are described in the following table.
1
Help Window Title
2
Help Window Text
3
Clear Message (CLR MSG) Key
4
TOTAL MESSAGES
5
LOAD FMC Key
RETURN EXITSEND PRINT RESET
WAYPOINT IDENTIFIER
FORMAT:
NAME: SEA NOLLA KPDX
LAT/LON: N4722.5W12208.3
PLACE BRG DIST: ELN350/23
INVALID ENTRY
CLR
MSG
02 TOTAL
MESSAGES
GLOBAL1
LOAD
FMC
2
3
MULTIFUNCTION DISPLAY
1
4
5
