Communications -
MFD Communications Functions
Copyright © The Boeing Company. See title page for details.
5.40.16 D615Z003-TBC

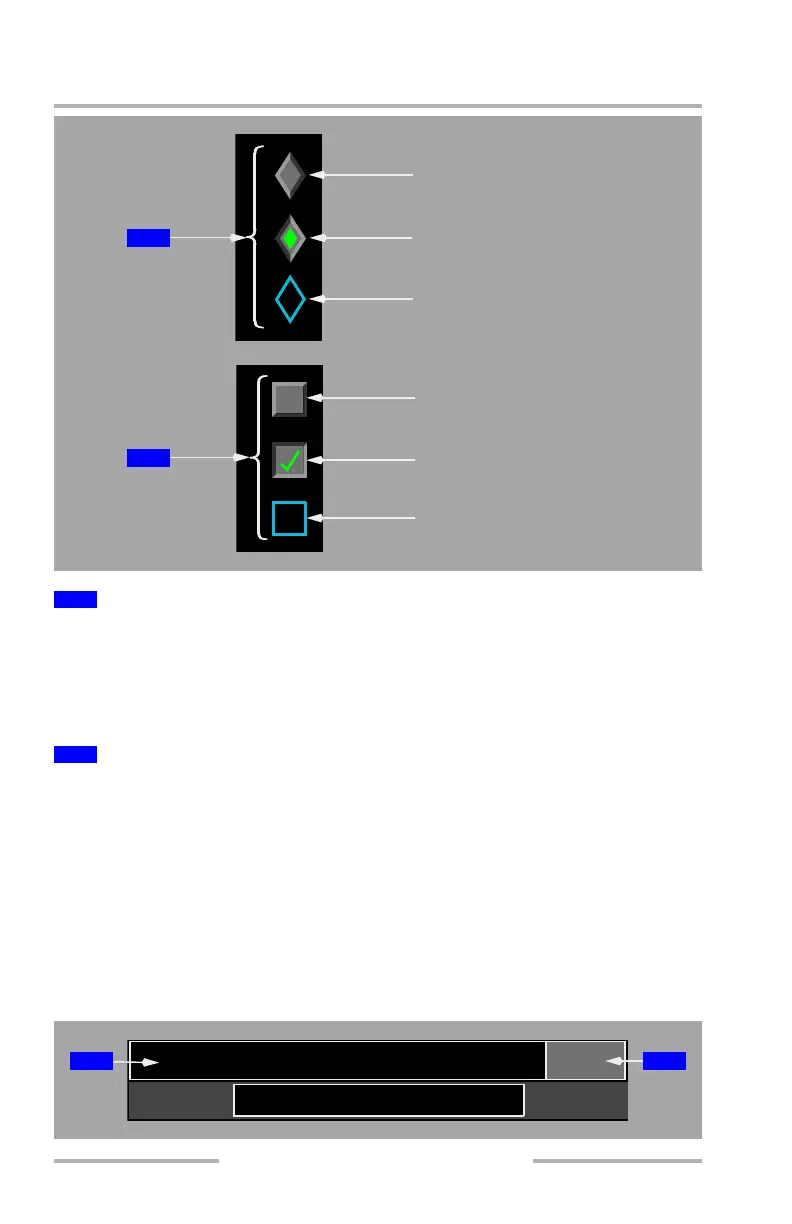

The diamond–shaped exclusive select keys are used to select a single feature from
a group. Selecting a key activates the feature and all other exclusive select keys in
that group are deselected. The keys are displayed in their selected or default
condition. If selection is required, the SEND key is not displayed until a selection
is made.
The square–shaped nonexclusive select keys are used to select multiple features.
Selecting a key activates the feature. The keys are displayed in their previously
selected or default condition. If selection is required, the SEND key is not
displayed until a selection is made.
Information Messages
Messages are displayed in an information box at the bottom of the MFD and relate
to message status. The information box covers the command keys. Information
messages, such as SENT, are cleared by selecting EXIT INFO. Some information
messages automatically disappear.
1
Exclusive Select Key
2
Nonexclusive Select Key
Not Selected
Selected (green check,
gray background)
Inhibited (cyan diamond,
black background)
Selected (green diamond,
gray background)
Not selected
(gray background)
1
2
(gray background)
Inhibited (cyan box,
black background)
SENT
EXIT
INFO
1
2
June 16, 2008
To Next Page
