ATC Connection Displays

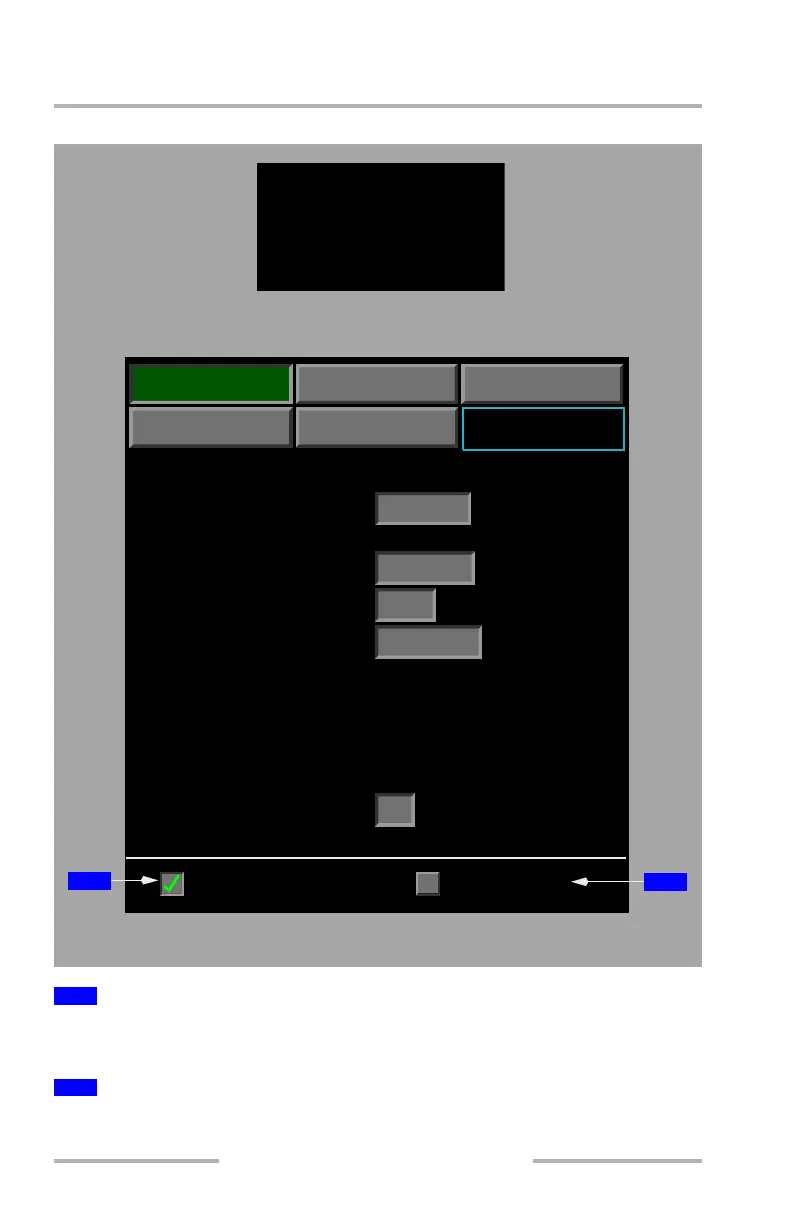

Displayed when an ATC connection is established.
Selecting ATC DATALINK OFF displays the CONFIRM OFF selection.
Selecting CONFIRM OFF sends the termination request.
1
ATC DATALINK OFF
2
CONFIRM OFF
ATC
FLIGHT
INFORMATION
COMPANY
REVIEW
MANAGER
1027z ATC LOGON/STATUS
LOGON TO:
----
FLIGHT NUMBER:
FILED DEPARTURE TIME:
FILED DEPARTURE DATE:
BOE1234
25-JAN-05
ORIGIN: DESTINATION:KLAX RJAA
ATC CONNECTION:
ESTABLISHED
ACTIVE CENTER:
KZAK
NEXT CENTER:
RJTG
MAX UPLINK DELAY:
---
SEC
ADS STATUS:
ACTIVE
ATC DATALINK
OFF
CONFIRM OFF
1100
z
NEW MESSAGES
COMM SYSTEM MESSAGE
ATC COMM ESTABLISHED
WITH KZAK
CANCEL
ATC MESSAGE BLOCK
1
2
MULTIFUNCTION DISPLAY
