Displayed (amber) – maximum continuous EGT limit.
Displayed:
• (white) – normal operating range
• (amber) – maximum continuous limit reached
• (red) – maximum start or takeoff limit reached
Displayed (red) when the engine fire switch is in and:
• the FUEL CONTROL switch is in CUTOFF, or
• the N2 RPM is below idle
EGT (ºC), displayed:
• (white) – normal operating range
• (amber) – maximum continuous limit reached
• (red) – maximum start or takeoff limit reached

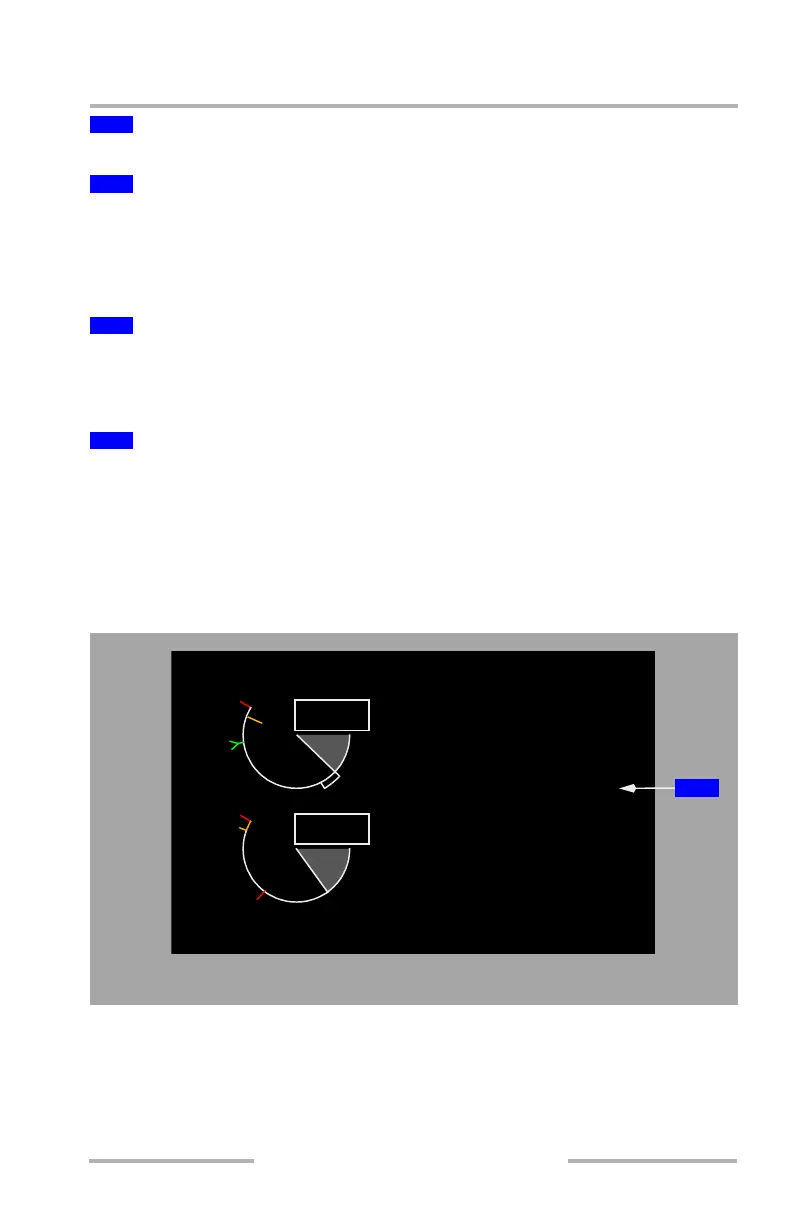

In–Flight Start Envelope
[Option – GE engines]
2
EGT Amber Band
3
EGT Indication
4
EGT Start Limit Line
5
EGT
EGT
1
N
97
FL 300 270-330 KTS
.15 2
81.3
EICAS DISPLAY
1
