787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Controls -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
9.10.8 D615Z003-TBC
Flap System

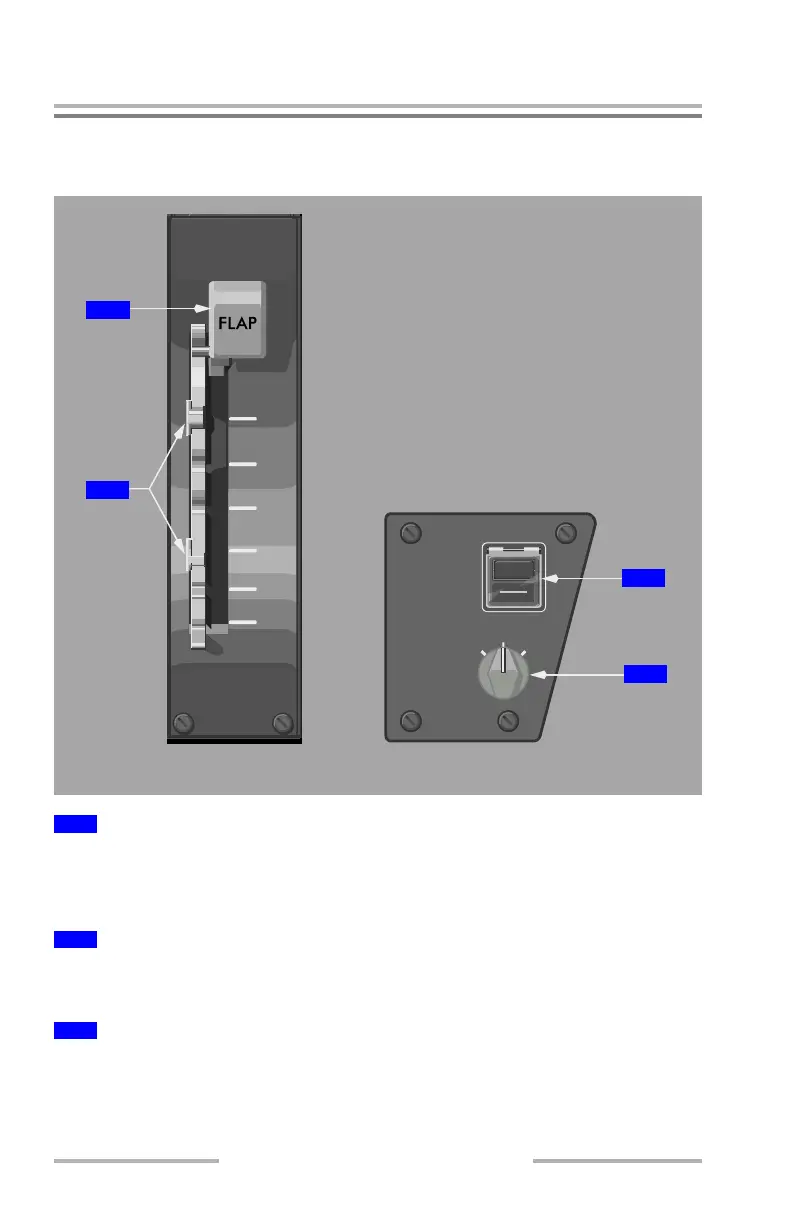

Flap Controls
Primary mode – positions the slats and flaps hydraulically.
Secondary mode – positions the slats and flaps hydraulically and/or electrically
when the primary mode fails.
1 – prevents inadvertent retraction of the slats.
20 – prevents inadvertent retraction of the flaps past the go–around position.
Push (ALTN displayed) –
• arms the alternate flap control mode
• arms the alternate flaps selector
1
Flap Lever
2
Flap Gates
3
Alternate Flaps Arm (ALTN FLAPS ARM) Switch
CONTROL STAND
ALTN FLAPS
ARM
OFF
RET EXT
ALTN
3
4
UP
1
5
15
20
25
30
1
2
August 14, 2009
