Flight Controls -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
9.10.14 D615Z003-TBC

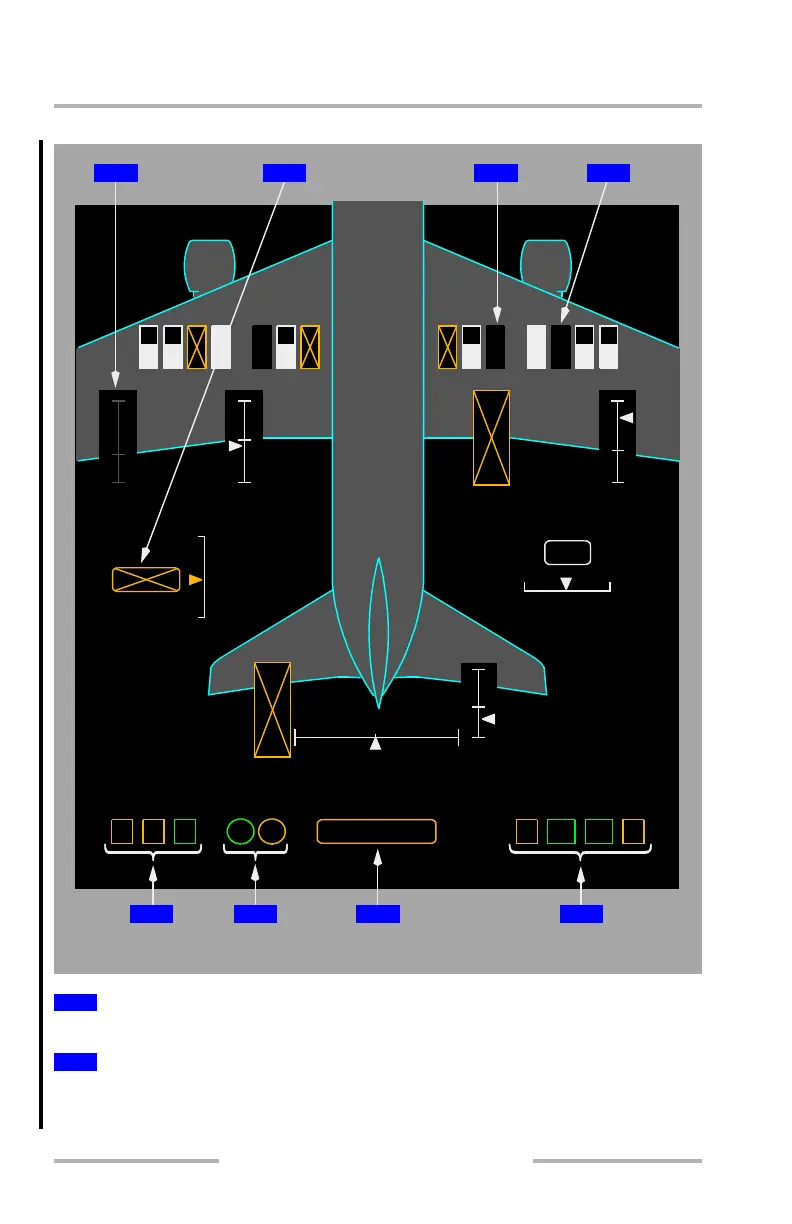

Non–Normal Flight Control Synoptic
Unknown alieron positon is indicated by a gray scale and no pointer.
Failed control surfaces and trim functions are indicated by an amber border with
an “X”inside.
1
Unknown Aileron Position
2
Failed Control Surface or Trim Function
L ELEV
L C2C1
ACESHYDRAULICS FLT CTRL MODE
L RCR
SECONDARY
R AIL
NU
ND
B
A
T
S
R ELEV
RUDDER TRIM
0.0
R FLPRN
RUDDER
L FLPRN
L AIL
SPOILERS
ELECTRICAL
L2 R2
MULTIFUNCTION DISPLAY
1 2 3 4
5 6 7 8
