787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
10.10.6 D615Z003-TBC

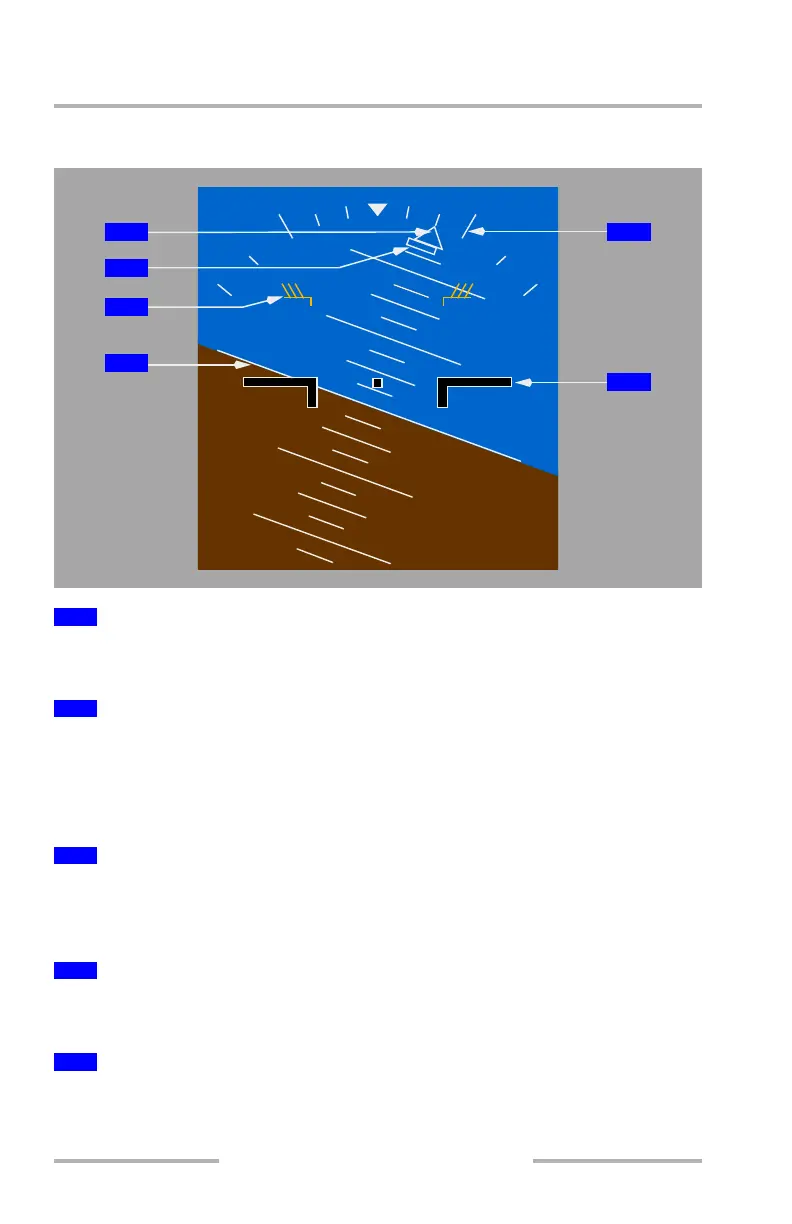

PFD Attitude Indications
[Option – Split cue]
Indicates ADRS bank in reference to the bank scale.
Fills and turns amber if bank angle is 35º or more.
Displaces beneath the bank pointer to indicate slip or skid.
Fills white at full scale deflection.
Turns amber if bank angle is 35º or more; fills amber if the slip/skid indication is
also at full deflection.
Indicates pitch limit (stick shaker activation point for the existing flight
conditions).
Displayed when the flaps are not up, or at slow speeds with the flaps up.
Indicates the IRS horizon relative to the airplane symbol.
Pitch scale is in 2.5º increments.
Fixed reference for the bank pointer.
Scale marks are at 0º, 10º, 20º, 30º, 45º, and 60º.
1
Bank Pointer
2
Slip/Skid Indication
3
Pitch Limit Indication
4
Horizon Line and Pitch Scale
5
Bank Scale
1
0
1
0
2
0
2
0
1
0
1
0
2
0
5
6
1
2
3
4
October 31, 2007
