787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 10.10.7
Indicates airplane attitude with reference to the IRS horizon.

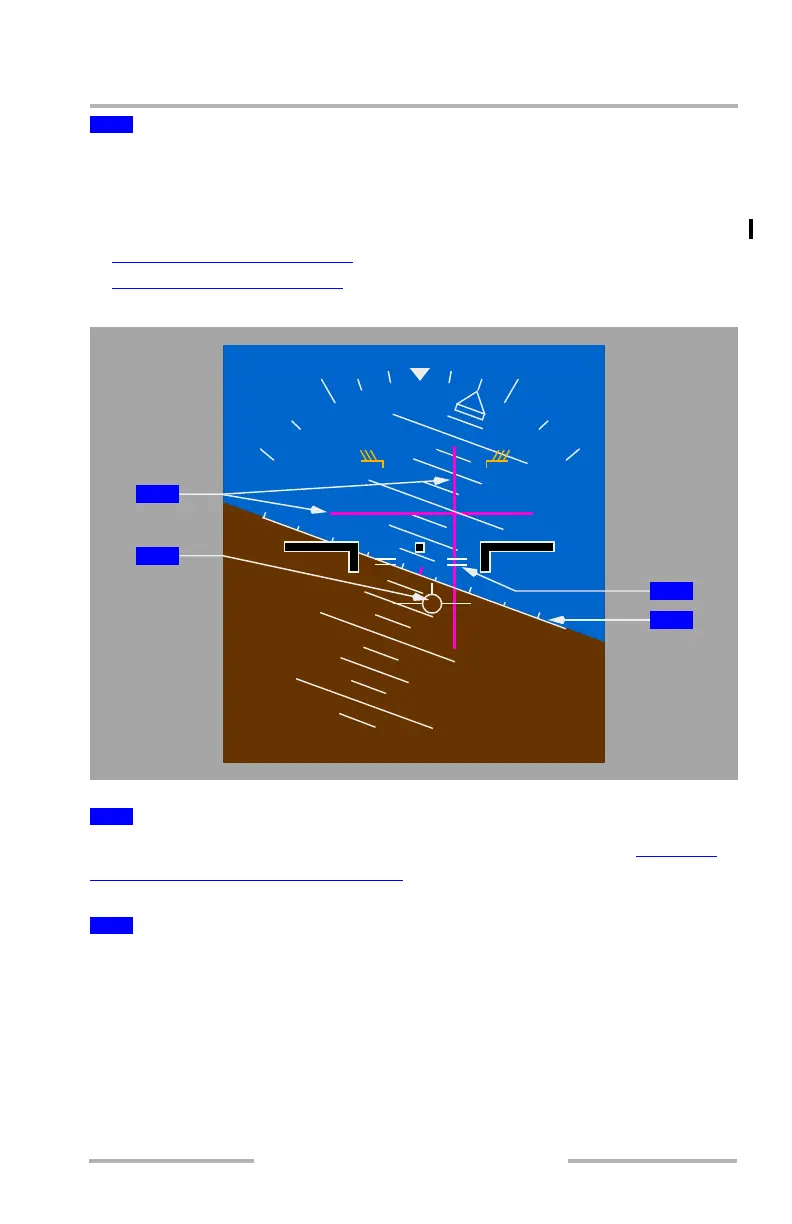

PFD Steering Indications
For additional information, refer to:
• TCAS PFD Vertical Guidance
, Ch. 15, Sec. 10
• Alerts Displayed on the PFD
, Ch. 15, Sec. 10
[Option – Split cue, Horizon line heading scale]
[Option – Split cue]
Indicates flight director pitch and roll steering commands. (Refer to Autopilot
Flight Director Roll and Pitch Controls in Chapter 4, Section 10, for additional
information.)
Displays flight path angle and drift angle if:
• FPV is selected on the EFIS control panel, or
• FPA (flight path angle) is selected on the MCP
Flight path angle is displayed relative to the horizon line.
Drift angle is represented by the perpendicular distance from the centerline of the
pitch scale to the FPV symbol.
6
Airplane Symbol
1
Flight Director Pitch and Roll Bars
2
Flight Path Vector (FPV)
1
0
1
0
2
0
2
0
1
0
1
0
2
0
1
5
1
4
1
3
1
2
4
3
1
2
February 15, 2010
