787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
10.10.8 D615Z003-TBC
Indicates the selected flight path angle when FPA is selected on the MCP.
[Option – Horizon line heading scale]
Displays when:
• FPV is selected on the EFIS control panel, or
• FPA (flight path angle) is selected on the MCP, and
• current bank angle is less than 50º, and
• absolute pitch angle is less than 20º
A magenta bug is displayed which reflects the MCP selected heading/track value.

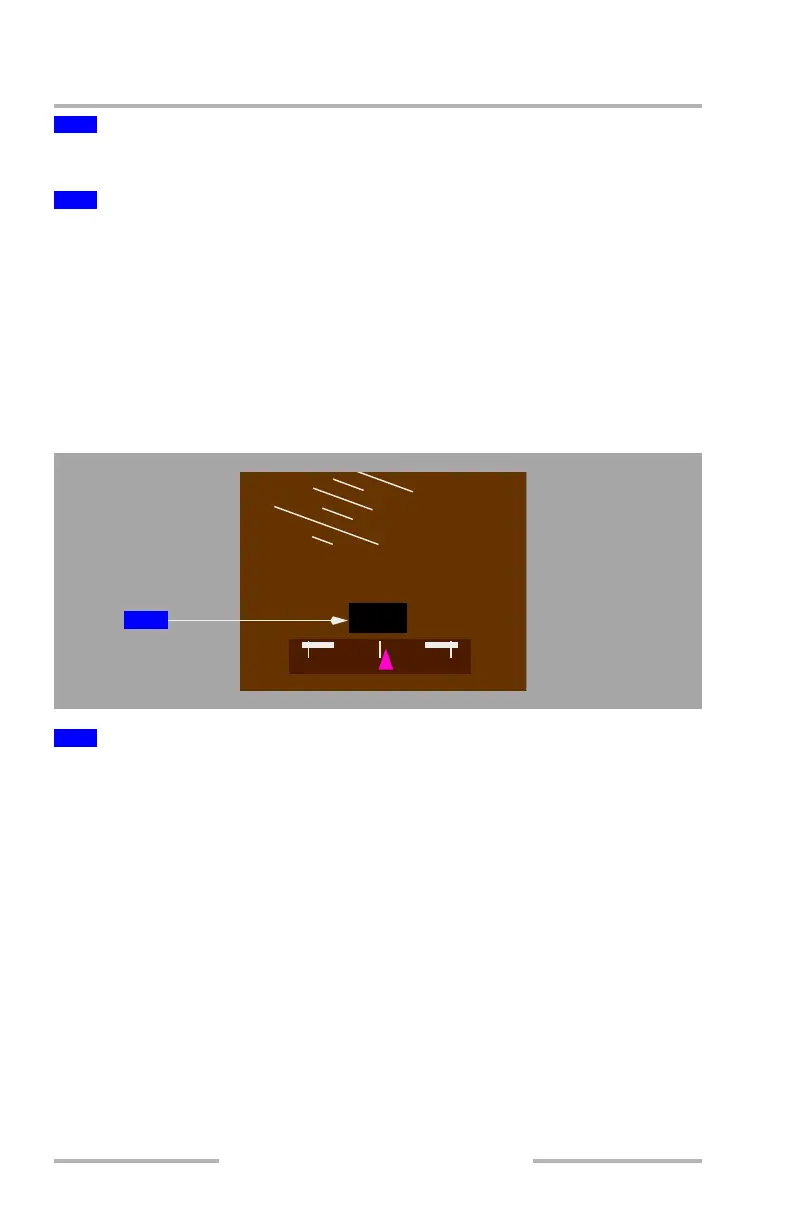

PFD Radio Altitude Indications
[Option – Digital RA]
Displays radio altitude below 2,500 feet AGL.
The display box is highlighted in white for 10 seconds when passing below 2,500
feet.
Turns amber when below radio altitude minimums.
3
Selected Flight Path Angle (FPA)
4
Horizon Line Heading Scale
1
Radio Altitude
1
0
2
0
860
1
June 16, 2008
