PFD Altitude Indications

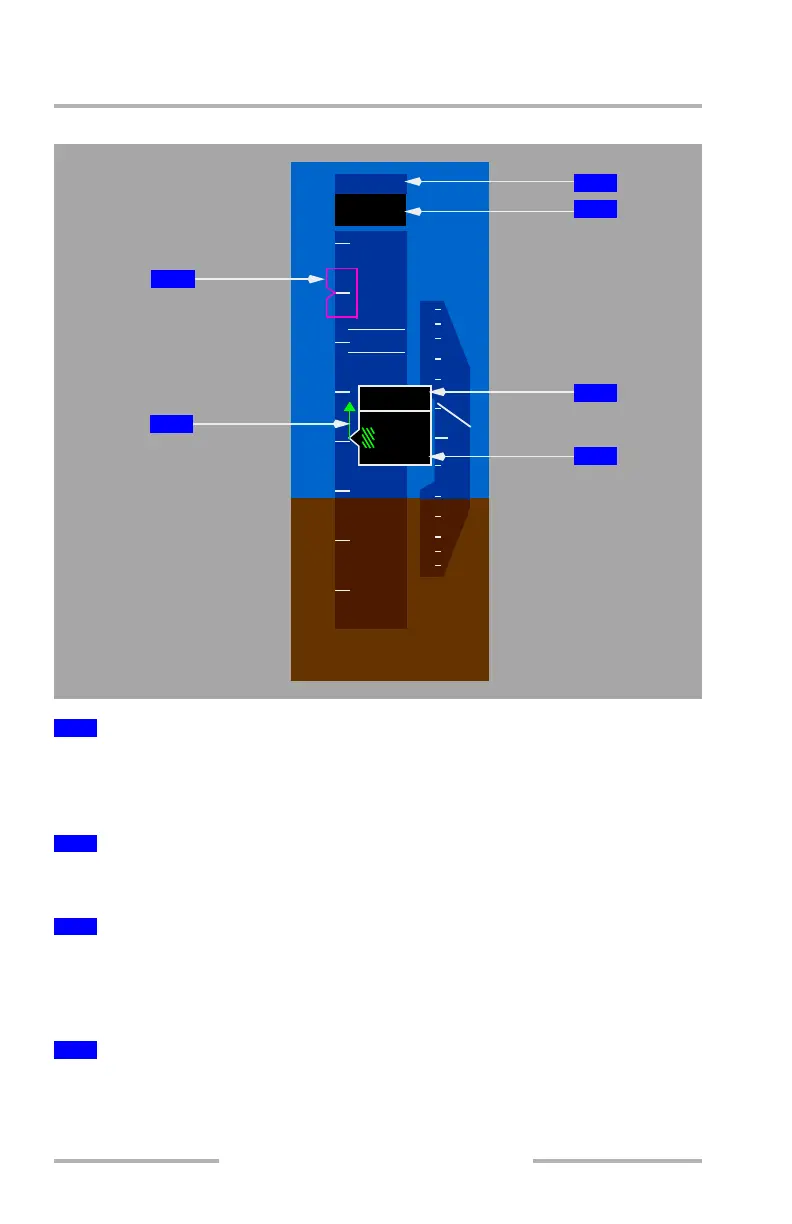

Indicates the altitude set in the MCP altitude window.
When the selected altitude is off scale, the bug is parked at the top or bottom of
the tape, with only one half the bug visible.
Indicates expected altitude six seconds ahead in time based on the current vertical
speed.
Displayed when MTRS is selected on the EFIS control panel MTRS switch.
Indicates selected altitude in meters (selected in feet in the MCP altitude window).
Displays in 10 meter increments.
Displays the altitude set in the MCP altitude window.
The selected altitude box is highlighted in white between 900 feet and 300 feet
prior to reaching the selected altitude.
1
Selected Altitude Bug
2
Altitude Trend Vector
3
Selected Altitude – Meters
4
Selected Altitude
5
000
8
20
4
00
5
5
200
6
L
29.86
IN
1
1
2
2
6
100
750
4
600
1463M
1550M
1
3
4
5
6
2
