787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 10.10.19
Displayed when MTRS is selected on the EFIS control panel MTRS switch.
Displays altitude in meters.
Indicates current ADRS altitude.
Current altitude box –
• highlighted white between 900 feet and 300 feet prior to reaching the
selected altitude
• highlighted amber when deviating beyond 300 feet from selected altitude.
If deviation continues beyond 900 feet, amber highlight is removed.

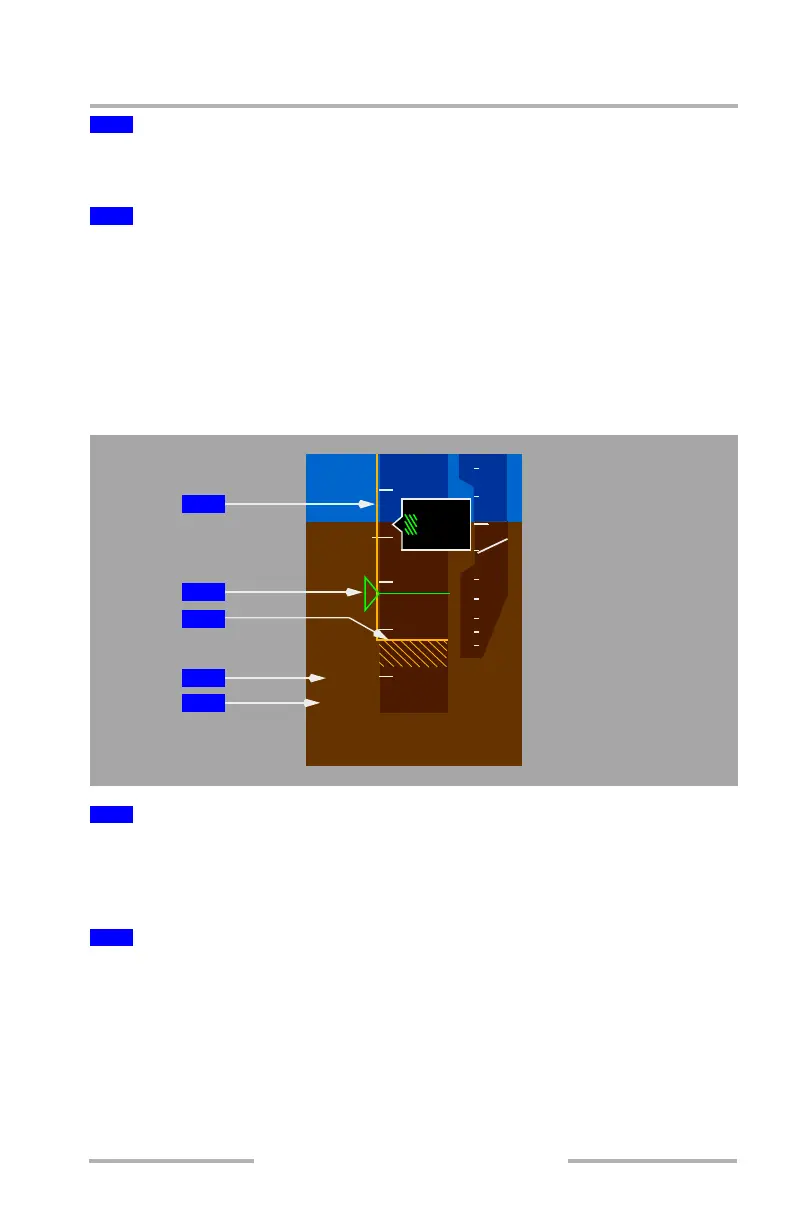

PFD Landing Altitude/Minimums Indications
Indicates the height above touchdown.
White bar – 500 to 1,000 feet above landing altitude.
Amber bar – 0 to 500 feet above landing altitude.
When BARO minimums are displayed, the number is also represented as a
triangular bug and line on the altitude scale.
Turns steady amber when the airplane descends below baro minimums.
When RA minimums are displayed after BARO minimums are selected, the bug
remains on the altitude scale.
5
Current Altitude – Meters
6
Current Altitude
1
Landing Altitude Reference Bar
2
BARO Minimums Pointer
550
800
1
2
L
29.86
IN
6
0
1
1
2
40
20
BARO
1880
1
2
4
5
3
August 14, 2009
