787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
10.10.22 D615Z003-TBC

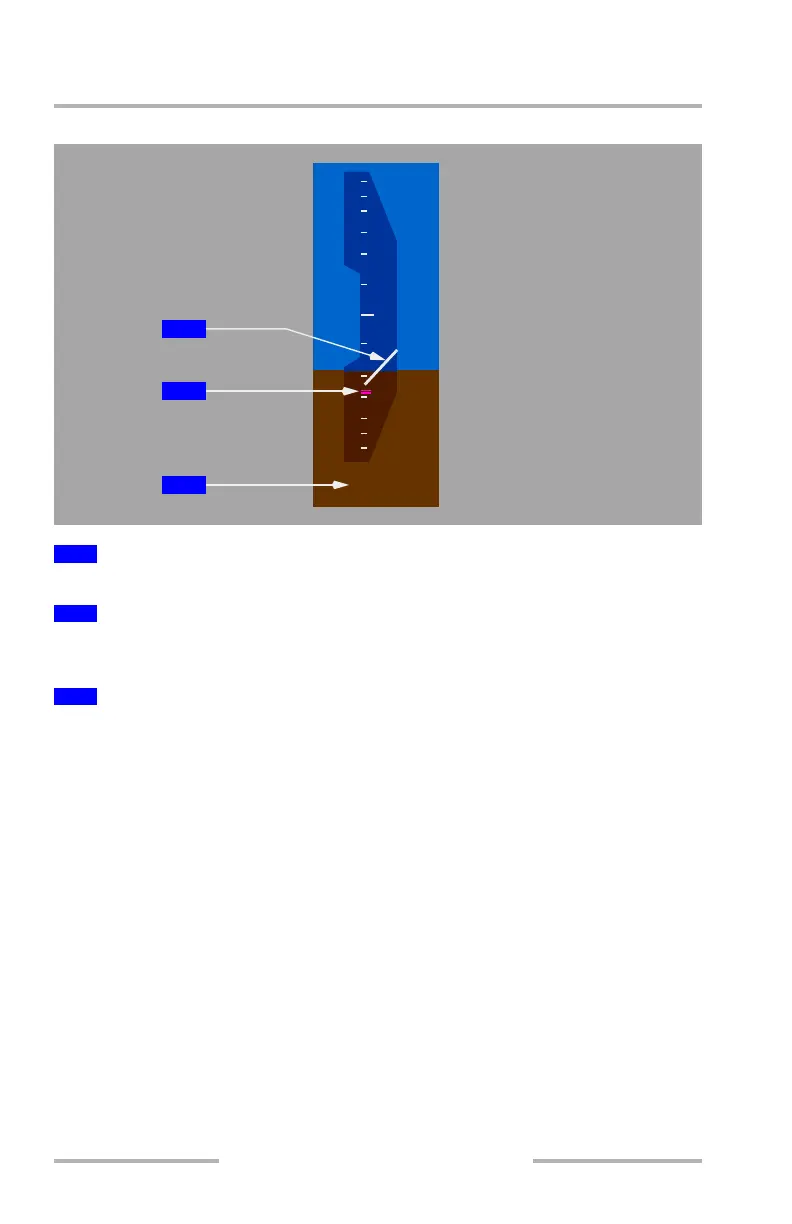

PFD Vertical Speed Indications
Indicates current vertical speed.
Indicates the speed selected in the MCP vertical speed window with the V/S pitch
mode engaged.
Displays vertical speed when greater than 400 feet per minute.
The display is located above the vertical speed indication when climbing and
below when descending.
1
Vertical Speed Pointer
2
Selected Vertical Speed Bug
3
Vertical Speed
6
1
1
2
2
6
1200
2
3
1
August 14, 2009
