PFD Heading/Track Indications
Note: The selected track bug and selected heading bug are not displayed at the
same time.
[Option – Track up]
Indicates current heading.
The selected track bug is displayed on the inside of the compass rose.
If selected track exceeds display range, the bug parks on the side of the compass
rose in the direction of the shorter turn to the track.
Indicates the current track.
Digital display of the selected heading or track bug.
When HDG (heading) is selected, SEL HDG is displayed.
When TRK (track) is selected, SEL TRK is displayed.
The selected heading bug is displayed on the outside of the compass rose.
If selected heading exceeds display range, the bug parks on the side of the
compass rose in the direction of the shorter turn to the heading.

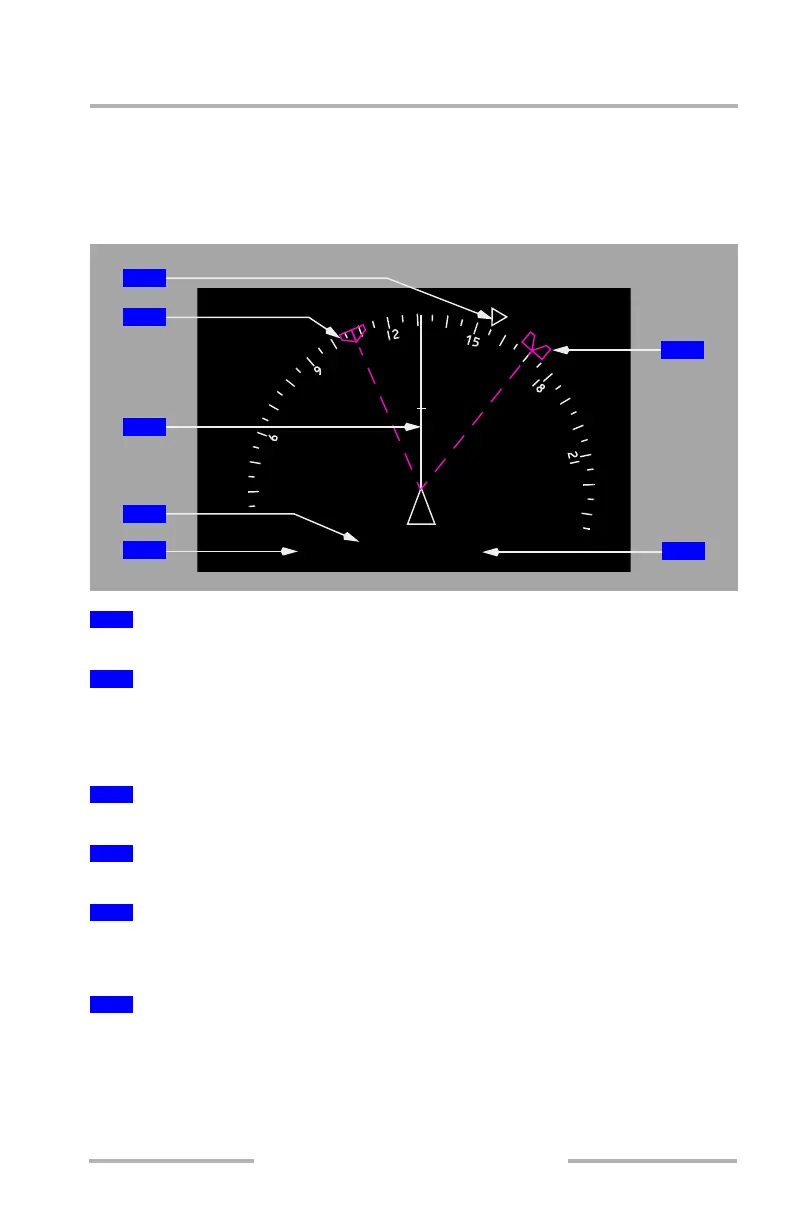

1
Current Heading Pointer
2
Selected Track Bug (MCP Selection)
3
Track Line
4
Selected Heading/Track (MCP Selection)
5
Selected Heading/Track Reference (MCP Selection)
6
Selected Heading Bug (MCP Selection)
SEL HDG
MAG
170
1
0
3
4
5
6
7
1
2
