Push –
• selects the standard barometric setting (29.92 inches Hg/1013 HPA) for the
PFD barometric reference
• if STD is displayed, selects the preselected barometric setting
• if no preselected barometric setting is displayed, displays the last value
before STD was selected
Rotate (slew) – adjusts the PFD barometric reference.
IN – selects inches of mercury as the PFD barometric reference.
HPA – selects Hectopascals as the PFD barometric reference.

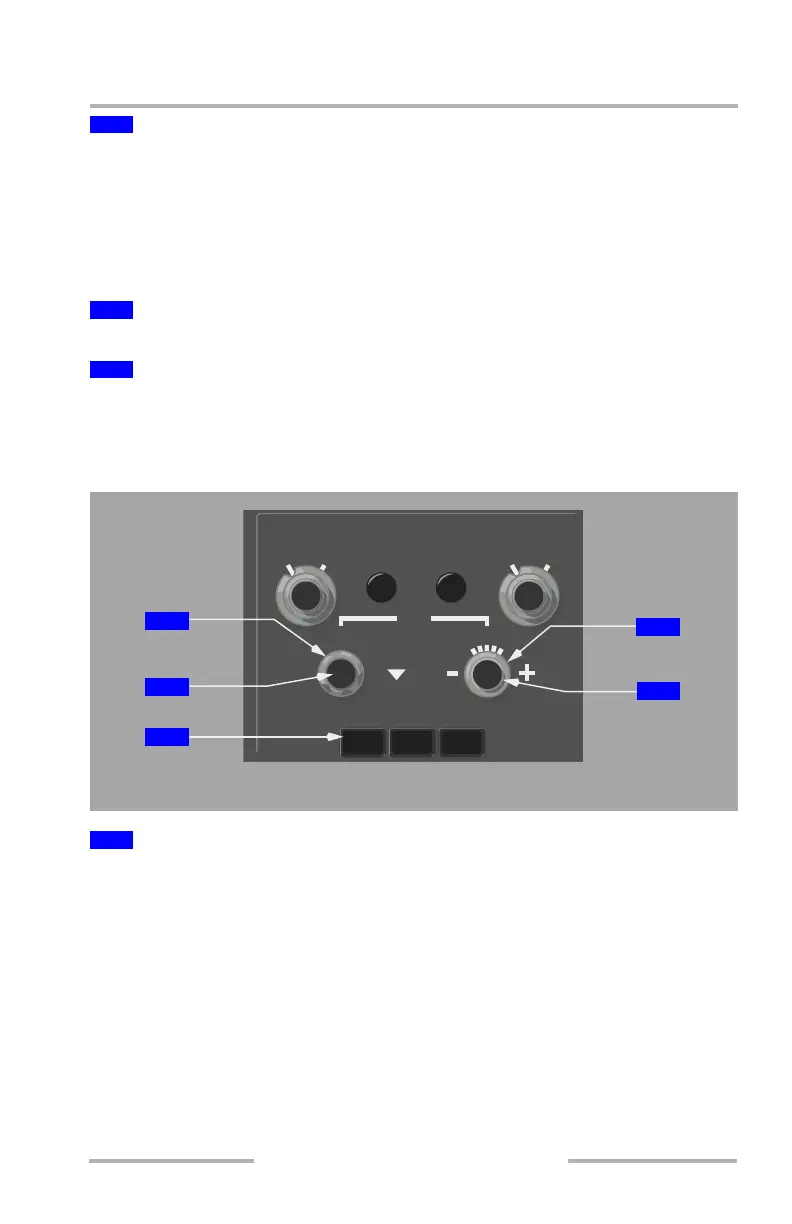

EFIS Control Panel – ND Controls
Moves the highlight box to the desired ND map display or map information
selection.
MAP –
[Option – Track up]
• displays a moving, track-up route depiction
• displays FMC-generated route and map information, airplane position,
heading, and track
• displays waypoints, including the active waypoint, within the selected
range
• displays VNAV path deviation
6
Barometric Standard (BARO STD) Switch (Inner)
7
Barometric (BARO) Selector (Middle)
8
Barometric (BARO) Reference Selector (Outer)
1
ND Mode Selector (Outer)
TERRTFCWXR
STD
RST
CTR
MINS
RADIO BARO
MAP
PLAN
MENU
RANGE
FPV MTRS
IN
BARO
HPA
ND
SEL
GLARESHIELD PANEL
1
2
3
4
5
