Flight Instruments, Displays -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
10.10.44 D615Z003-TBC
• displays waypoints, including the active waypoint, within the selected
range
• displays VNAV path deviation
When selected –
• displays a nonmoving, true north-up, route depiction
• allows route step-through using the CDU legs page
• weather radar and TCAS are not displayed in PLAN mode

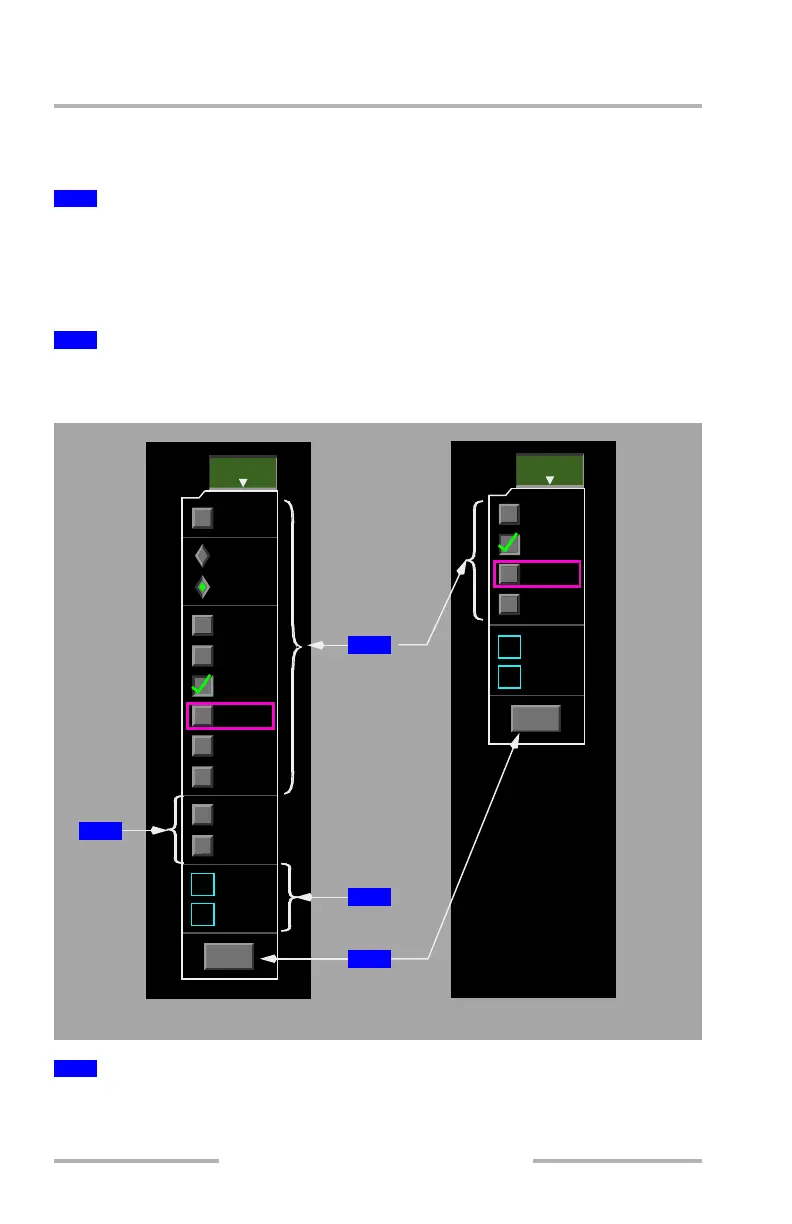

Selected – displays a drop-down menu containing map information selections
De-selected – removes menu from ND
Displays the respective VOR pointer, VOR frequency or identification, and
associated DME information.
2
PLAN Key
3
MENU Key
1
VOR Selections
MAP MODE
AIRSP
FIR
VOR R
VOR L
DATA
POS
STA
APT
WPT
WXR
TERR
VSD
EXIT
TFC
MENU
AIRSP
FIR
DATA
STA
APT
WPT
EXIT
MENU
PLAN MODE
1
3
2
2
