Push – enters “DELETE” in scratchpad.

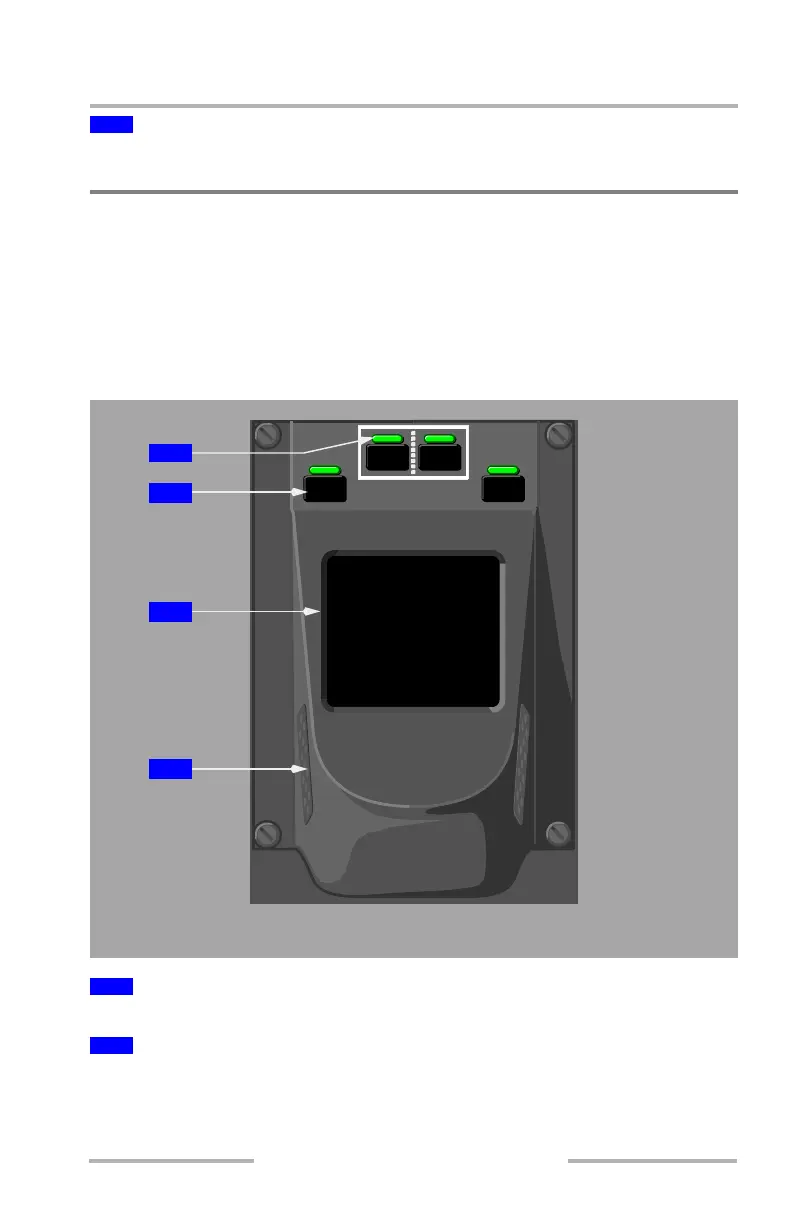

Cursor Control Device (CCD)
The left CCD controls the left inboard display unit and the lower display unit
cursor position and operation.
The right CCD controls the right inboard display unit and the lower display unit
cursor position and operation.
The left CCD is shown; the right CCD is similar, except the EFB switch and the
LWR switch are located on the opposite side of the CCD.
The associated annunciator light illuminates to indicate where the cursor appears.
Selects the display where the cursor appears (EFB, left MFD, right MFD, or lower
MFD) and automatically deselects the previous display.
8
Delete (DEL) Key
1
Cursor Location Lights
2
Cursor Location Switches
LWREFB
RL
CONTROL STAND
2
1
3
4
