787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
10.10.56 D615Z003-TBC

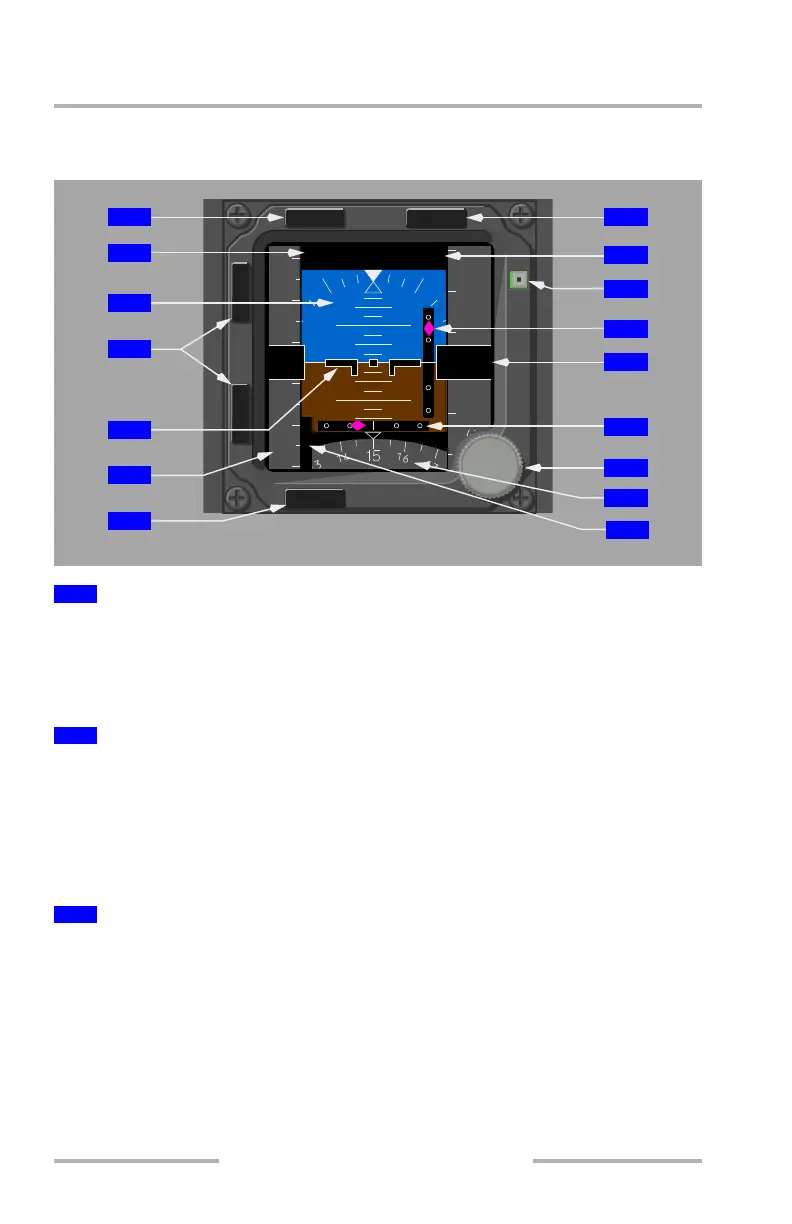

Integrated Standby Flight Display (ISFD)
Provides an independent source of attitude, airspeed, and altitude information.
Push –
• when blank, selects APP
• when APP displayed, selects B/CRS
• when B/CRS displayed, blanks
Indicates approach mode selected.
Blank – no approach deviation data displayed.
APP – ILS/GLS localizer and glideslope deviation data displayed.
BCRS (back course) – reverses sensing for localizer pointer during back course
approaches.
Displays airplane attitude.
Indicates bank in reference to the bank scale.
Indicates the horizon relative to the airplane symbol.
Beyond 30º pitch, large red arrowheads (V-shaped) indicate the attitude has
become excessive and the direction to the horizon line.
1
Approach (APP) Switch
2
Approach Mode Annunciation
3
Attitude Display
BARO
ATT
+
-
APP HP/IN
RST
160
12
7
10
10
220
180
240
13000
12600
13200
20
40
20
0
1
IN29.92
APP
12
T
R
U
CENTER FORWARD PANEL
8
9
11
12
13
14
1
2
3
4
5
6
7
16
15
10
February 15, 2010
