787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Head-Up Display System -
Displays
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 10.12.5

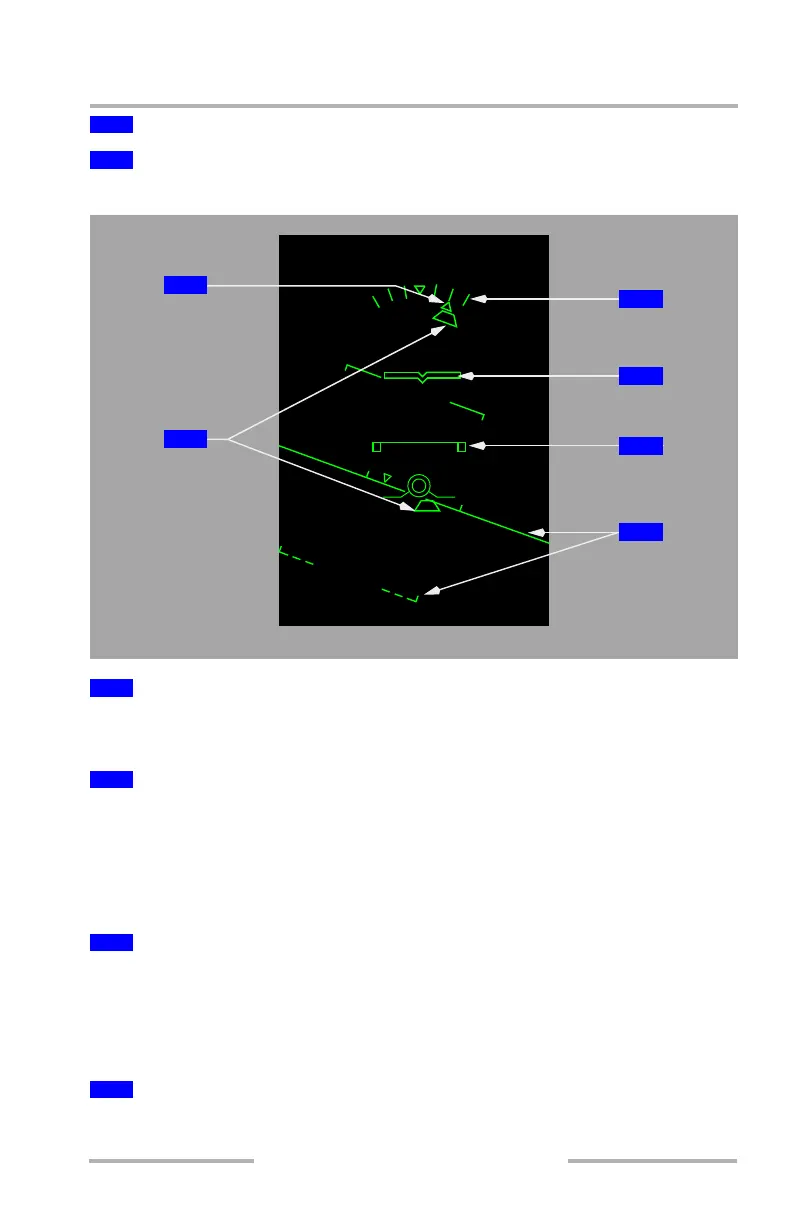

HUD Attitude Indications
Indicates ADRS bank in reference to the bank scale.
Fills if bank angle is 35º or more.
Displaces to indicate slip or skid.
Fills at full scale deflection.
Note: Indicator below flight path vector symbol only appears during takeoff or
low altitude go-around.
Fixed reference for the bank pointer.
Scale marks are at 0º, 10º, 20º, 30º.
Enhanced scale marks at 45º and 60º are added to the scale if the airplane bank is
within 10º of those bank angles.
6
Minimum Speed
7
Landing Flap and VREF Speed
1
Bank Pointer
2
Slip/Skid Indications
3
Bank Scale
4
Airplane Symbol
FLT DIR
0
5
-
5
5
5
H051
5
6
3
4
1
2
August 14, 2009
