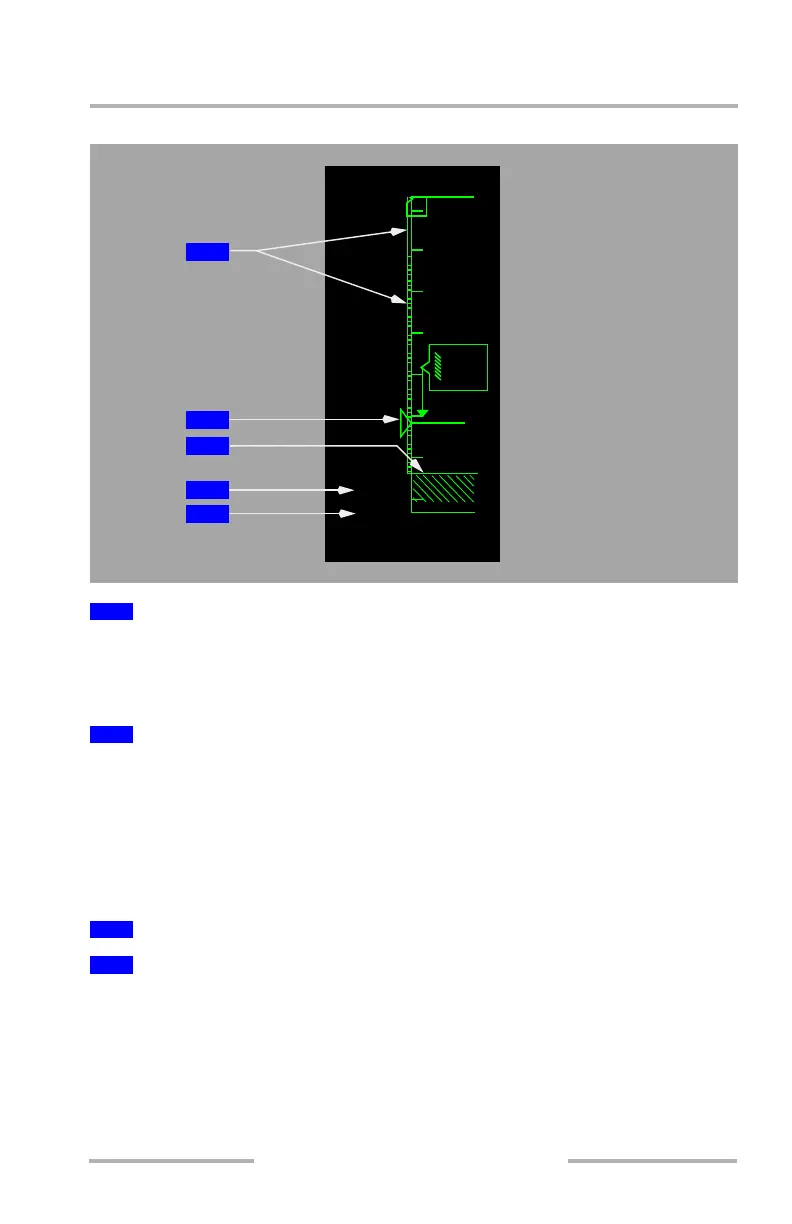

HUD Landing Altitude/Minimums Indications
Indicates height above touchdown.
(hollow bar) – 500 to 1000 feet above landing altitude.
(filled bar) – 0 to 500 feet above landing altitude.
When BARO minimums are displayed, the number is also represented as a
triangular bug and line on the altitude scale.
Flashes for 3 seconds, then steady when the airplane descends below baro
minimums.
When RA minimums are displayed after BARO minimums are selected, the bug
remains on the altitude scale.
Displays BARO when the EFIS control panel MINS reference selector is set to
BARO.
Displays RADIO when the EFIS control panel MINS reference selector is set to
RADIO.
Flashes for 3 seconds, then steady when the airplane descends below selected
minimum altitude.
1
Landing Altitude Reference Bar
2
BARO Minimums Pointer
3
Landing Altitude Indication
4
Minimums Reference
L
29.86
IN
BARO
1880
2
0
5
000
2
200
2
400
1
800
1
3
4
5
2
40
20
