787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Head-Up Display System -
Displays
Copyright © The Boeing Company. See title page for details.
10.12.14 D615Z003-TBC
Displays the approach minimums altitude set using the EFIS control panel MINS
selector:
• BARO minimums are feet MSL
• RADIO minimums are radio altitude feet AGL
Flashes for 3 seconds, then steady when the airplane descends below selected
minimum altitude.

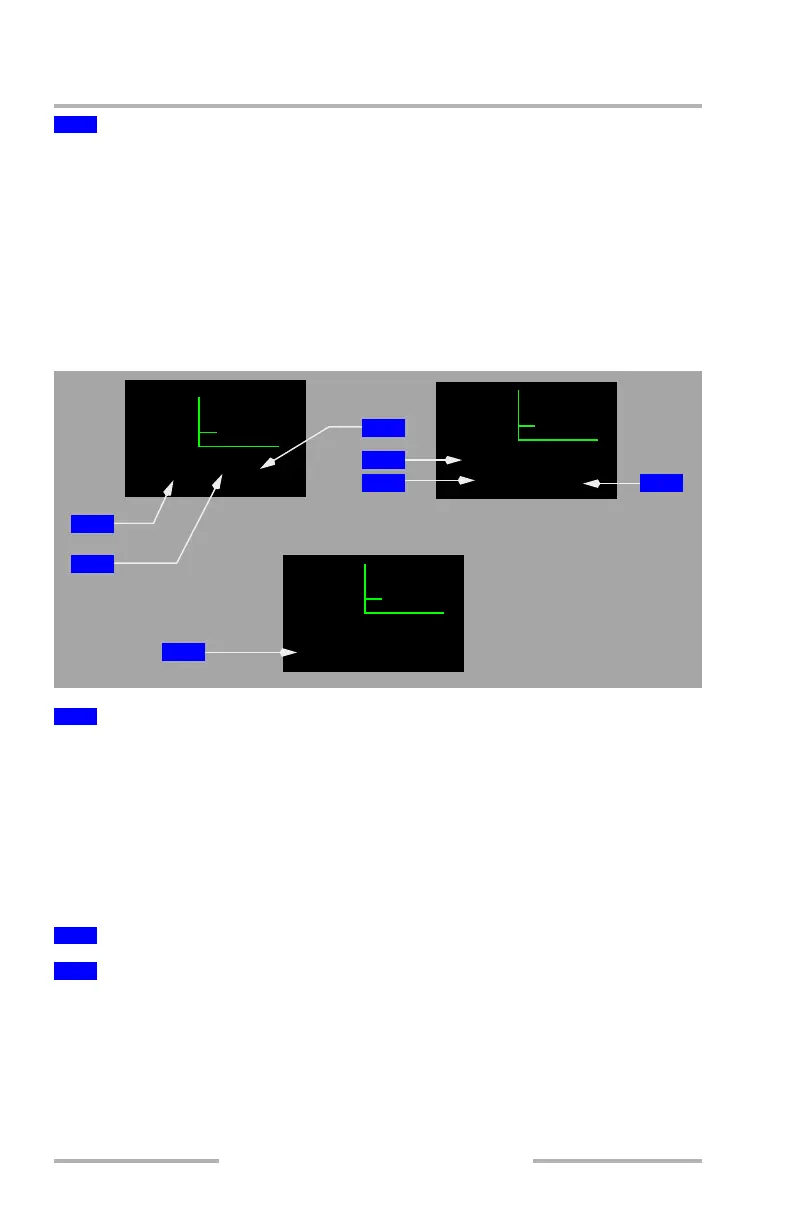

HUD Barometric Indications
[Option – QFE]
Indicates the barometric setting selected on the EFIS control panel barometric
selector.
STD is displayed when STD is selected on the EFIS control panel barometric STD
switch.
The display is boxed if a barometric setting is set and altitude climbs above the
transition altitude, or if STD is set and altitude descends below the transition flight
level.
Indicates QFE altitude reference selected on the CDU APPROACH REF page.
When selected, QFE is boxed for 10 seconds.
When QNH is selected, QNH is displayed for 10 seconds, then blanks.
5
Minimums
1
Barometric Setting
2
Barometric Reference
3
QFE Altitude Reference
400
4
29.86 IN QFE
L
400
24
STD
UL 29.86 IN
400
24
L
STD
29.86 IN QFE
4
5
6
7
2
3
1
August 14, 2009
