787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Navigation Displays
Copyright © The Boeing Company. See title page for details.
10.40.20 D615Z003-TBC

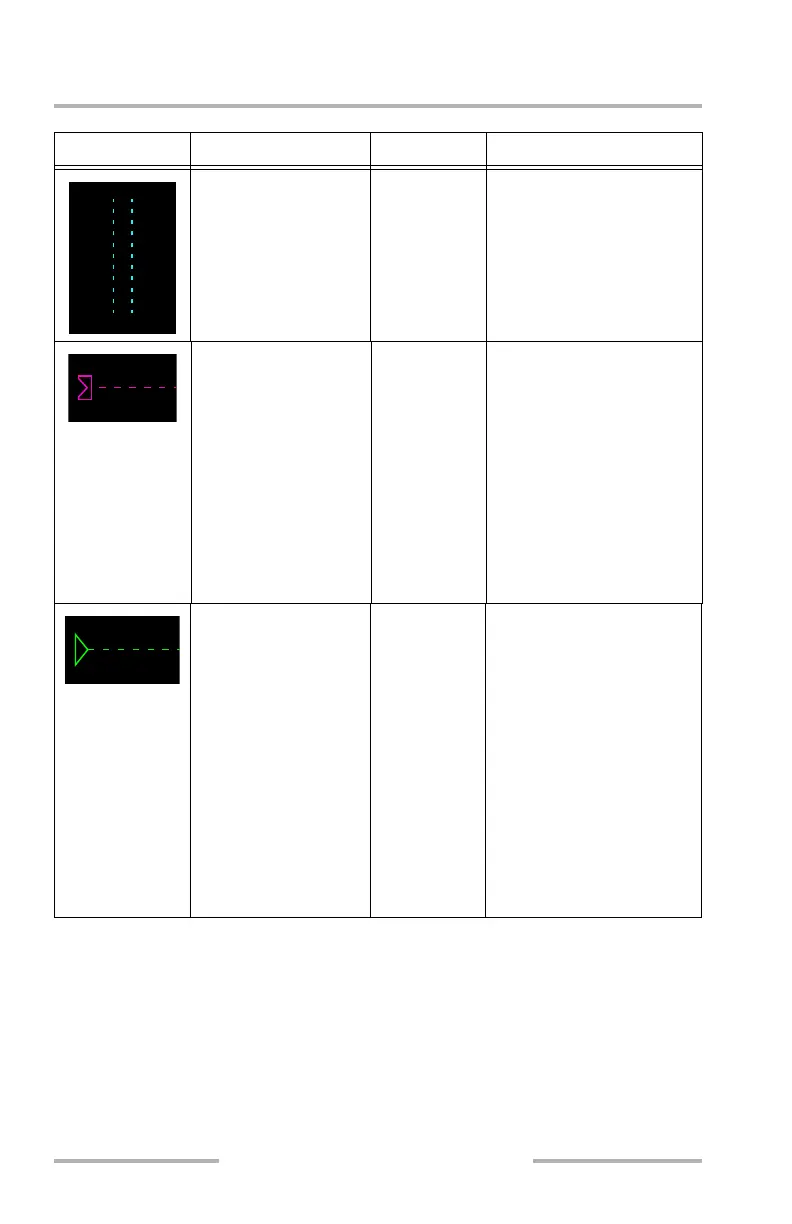

Symbol Name ND Mode Remarks
Enroute corridor (C)
(dashed line)
MAP, MAP
CTR
Indicates area of the map
that is shown on the VSD.
Displayed full time when
VSD is selected. During
turns, the corridor edge
leading the turn opens in
the direction of the turn.
Selected altitude bug
and line (M)
MAP, MAP
CTR
Bug indicates the altitude
set in the MCP altitude
window. When the selected
altitude is off scale, the bug
is parked at the top or
bottom, with only one half
the bug visible.
Dashed line extends from
bug to background display
boundary. Line does not
park.
BARO minimums
pointer and line (G)
MAP, MAP
CTR
Pointer indicates the
barometric minimums
selected on the EFIS
control panel.
Dashed line extends from
pointer to background
display boundary.
Pointer and line turn amber
when airplane descends
below selected minimum
altitude. Reset with the
RST switch on the EFIS
control panel.
February 15, 2010
