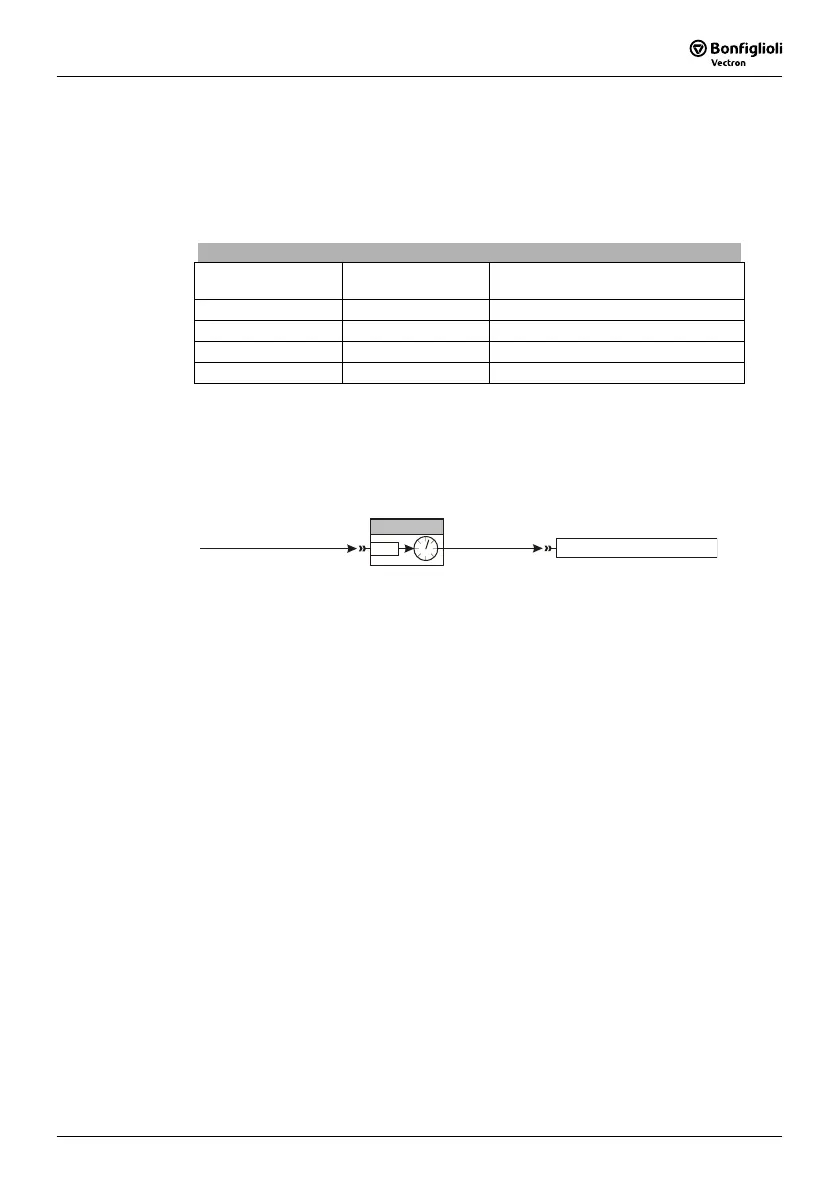

14.4.7 Data Set Change-Over
Parameter values can be stored in four different data sets. This enables the use of
various parameter values depending on the current operation point of the frequency
inverter.
The change-over between the four data sets is done via the logic signals assigned to
the parameters
Data Set Change-Over 1 70 and Data Set Change-Over 2 71.
The actual value parameter
Active Data Set 249 shows the selected data set.
Activation
Data Set Change-
Over 1
70
Data Set Change-
Over 2
71
Function/active data set
0 0 Data set 1 (DS1)
1 0 Data set 2 (DS2)
1 1 Data set 3 (DS3)
0 1 Data set 4 (DS4)
0 = contact open 1 = contact closed
If
Configuration 30 = 110, 111, 410, 411 or 430 is selected, in the factory setting a
timer function is interconnected between the digital input S4IND and the data set
change-over 1.
158 - Timer 1
Timer 1
83
P. 8 3
73 - S4IND
Data set change-over 1
70
The data set change-over 1 is linked with timer 1.
Data set change-over 1 70 = 158 – Timer 1
Timer 1 is linked with the digital input S4IND (terminal X210A.6)
Timer 1 = 73 – S4IND
In the factory setting the data set change-over 1 is not affected by the Timer 1:
Signal delay
Time 1 Timer 1 791 = 0.00 s/m/h
Signal duration
Time 2 Timer 1 792 = 0.00 s/m/h
