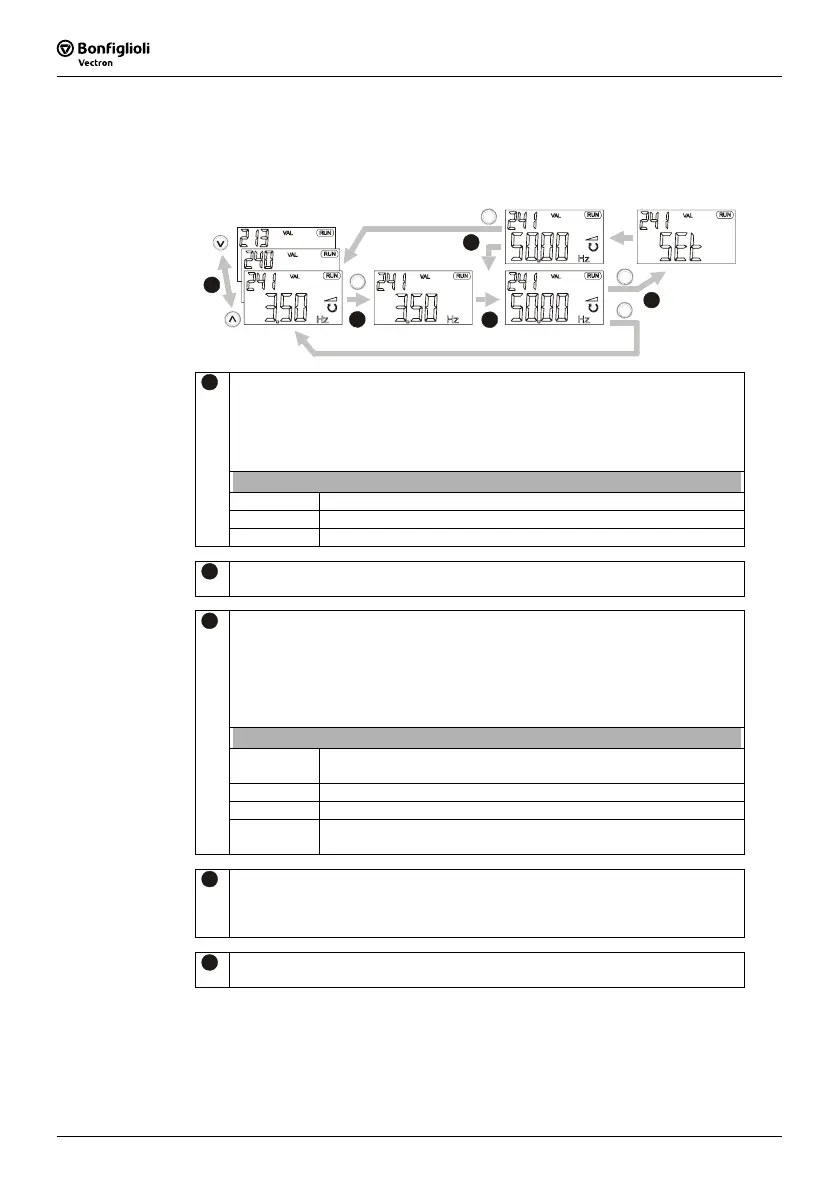

6.3 Actual Value Menu (VAL)
In the VAL menu branch, the control unit displays a variety of actual values, depend-
ing on the configuration selected and the options installed. The parameters and basic
software functions linked to the corresponding actual value are documented in the
operating instructions.
ENT
ESC
ENT
ESC
A
B
C
D
E
A
Use the arrow keys to select the required number from the actual values dis-
played in numerical order.
In the current record, the record-related actual value parameters are displayed,
including the corresponding data record number. The seven-segment display
shows data record 0 if the actual values in the four data sets are identical.
Keys
▲ + ▼
Display the actual value parameter upon switch-on.
FUN , ▲
Display last actual value parameter (highest number).
FUN , ▼
Display first actual value parameter (lowest number).
B
Use the ENT key to select the parameter. The parameter is displayed including
its current value, unit and the active data record.
C
During commissioning, operation and error analysis, it is possible to monitor
each actual value parameter specifically.
Some of the actual value parameters are arranged in the four available data
records. If the parameter values in the four data records are identical, the actual
value is displayed in data record 0. If the actual values in the four data records
are different, diFF is displayed in data record 0.
Keys
▲ , ▼
Switch to another of the data set in the case of related actual
values.
FUN , ▲
Determine minimum value and display it permanently.
FUN , ▼
Determine maximum value and display it permanently.
FUN , ENT Display of mean value of the actual value during the
monitoring period.
D
Use the ENT key to save the selected actual value as a parameter displayed at
switch-on. The message SEt (with parameter number) is displayed for a short
time. When the frequency inverter is switched on the next time, this actual value
will be displayed automatically.
E
After saving the parameter, you can monitor and display the value again. Use
the ESC key to switch to the parameter selection of the VAL menu branch.
