5.5 Connection of the construction sizes
5.5.1 ACT 201 (up to 3.0 kW) and ACT 401 (up to 4.0 kW)
The mains connection of the frequency inverter is done via plug-in terminal X1. The
connection of the motor and the brake resistor to the frequency inverter is done via
plug-in terminal X2. Degree of protection IP20 (EN60529) is only guaranteed if the
terminals are plugged in.
Danger! Switch off power supply before connecting or disconnecting the
keyed plug-in terminals X1 and X2. Dangerous voltage may be present
at the mains terminals and the DC terminals even after the frequency
inverter has been disconnected safely from power supply. Wait for some
minutes until the DC link capacitors have discharged before starting the
work.
• The unit may only be connected with the power supply switched off.
• Make sure that the frequency inverter is discharged.

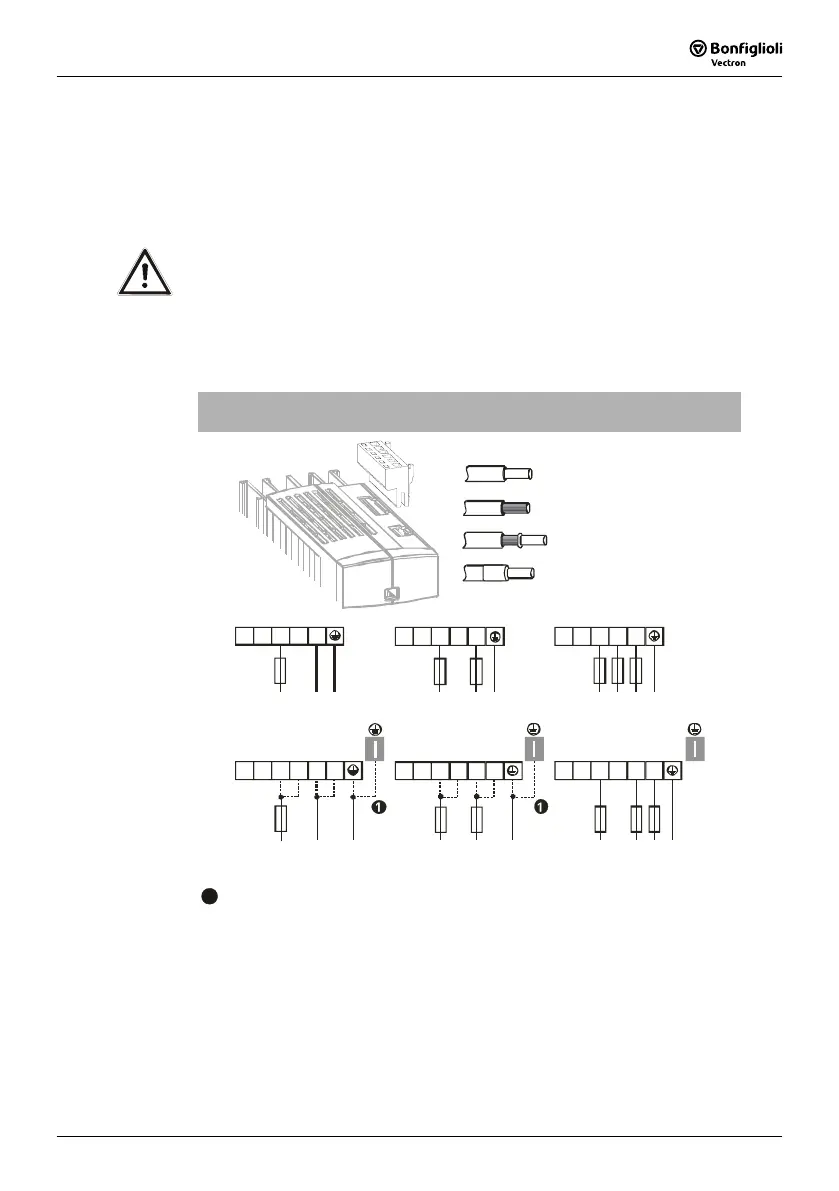

Mains power connection ACT 201 (up to 3.0 kW) and
ACT 401 (up to 4.0 kW)
X1
1ph / 230V AC
+
-
L1
L2 L3L1
N
PE
3ph / 230V AC
3ph / 400V AC
+
-
L1
L2 L3L1
L2
L3 PE
2ph / 230V AC
+
-
L1 L2 PE
L2 L3
L1
550 W … 1.1 kW
Phoenix ZEC 1,5/ .. ST7,5
0.2 … 1.5 mm
AWG 24 … 16
2
0.2 … 1.5 mm
AWG 24 … 16
2
0.25 … 1.5 mm
AWG 22 … 16
2
0.25 … 1.5 mm
AWG 22 … 16
2
2ph / 230V AC1ph / 230V AC
1.5 kW … 3.0 kW
L1 N PE
+
- L1 L2 L3L1
3ph / 230V AC
3ph / 400V AC
PE
1.5 kW … 3.0 kW 1.5 kW … 4.0 kW
+
-
L1 L2 L3L1
L1 L2 PE L1
+
-
L1 L2 L3L1
L2
L3
1
With a mains current above 10 A, the mains power connection 230 V 1ph/N/PE
and the mains power connection 230 V 2ph/N/PE are to be done on two termi-
nals.
