Operating Instructions ACTIVE06/07 47
06/07 Operating Instructions ACTIVE 47
5.5.5 ACT 401 (75.0 up to 132.0 kW)
Danger! Switch off power supply before connecting or disconnecting the
mains cable, motor cable and the brake resistor. Dangerous voltage may
be present at the mains terminals and the DC terminals even after the
frequency inverter has been disconnected safely from power supply.
Wait for some minutes until the DC link capacitors have discharged be-
fore starting the work.
• The unit may only be connected with the power supply switched off.
• Make sure that the frequency inverter is discharged.

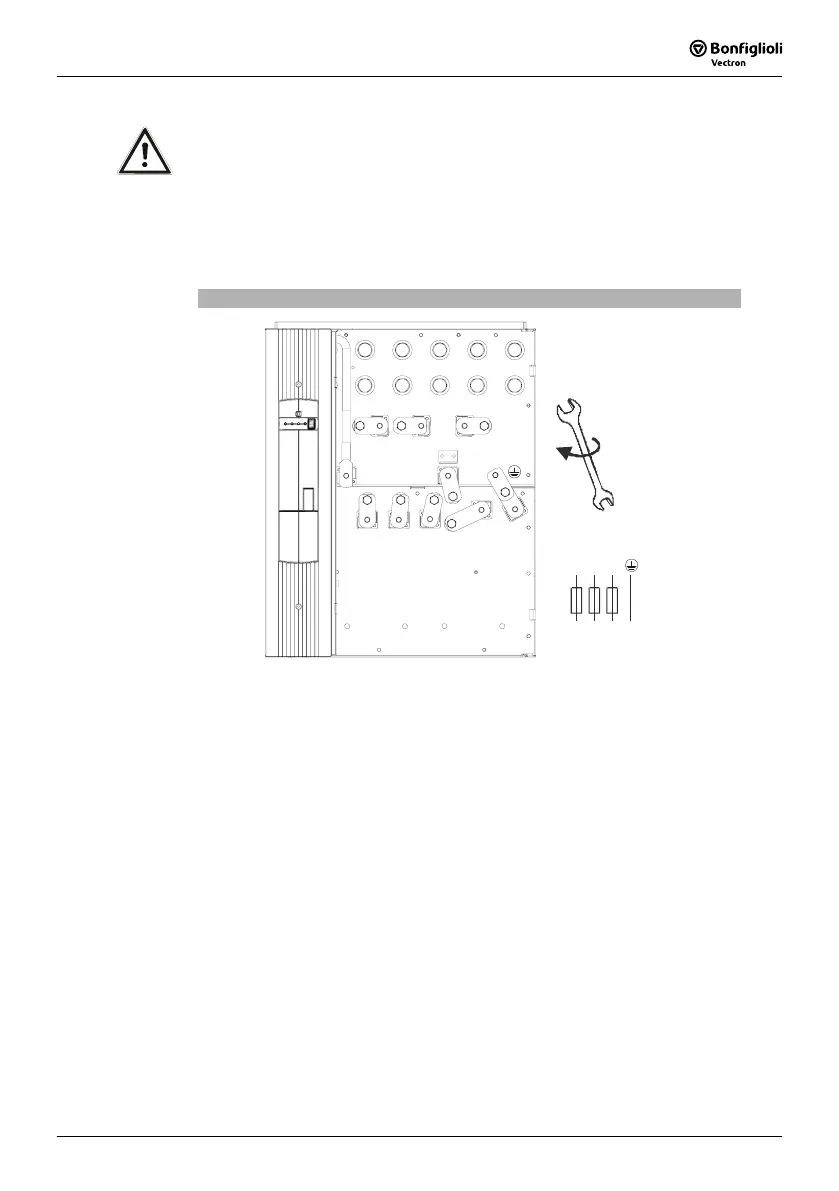

Mains power connection ACT 401 (75.0 up to 132.0 kW)
10 Nm
88.5 lb-in
U
VW
L1
L2
L3
Rb2
ZK+
ZK-
L1
L2 L3
L1
L2
L3 PE
3ph / 400V AC
Threaded bolt M8x20
