Operating Instructions ACTIVE 06/0750
50 Operating Instructions ACTIVE 06/07
5.6.1 Relay Output
By default, the freely programmable relay output is linked to the monitoring function
(factory setting). The logic link to various functions can be freely configured via the
software parameters. Connection of the relay output is not absolutely necessary for
the function of the frequency inverter.

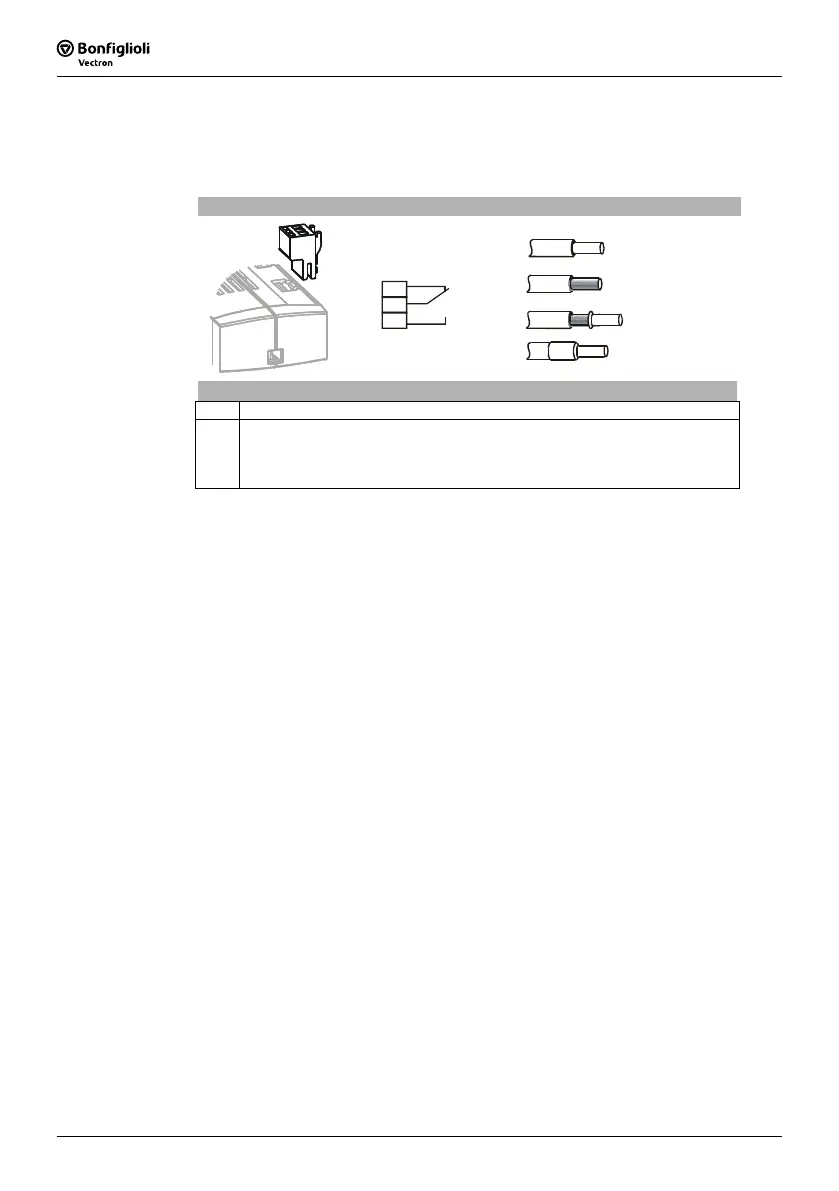

Relay Output
1
2
3
0.2 … 1.5 mm
AWG 24 … 16
2
Phoenix ZEC 1,5/3ST5,0
0.2 … 1.5 mm
AWG 24 … 16
2
0.25 … 1.5 mm
AWG 22 … 16
2
0.25 … 1.5 mm
WG 22 … 16
2
S3OUT
X10
X10
Control terminal X10
Ter. Description
1 .. 3 Relay output, floating change-over contact, min. 50 000 switching operations,
response time approx. 40 ms,
max. contact load, make contact AC 5 A / 240 V, DC 5 A (ohmic) / 24 V
max. contact load, break contact AC 3 A / 240 V, DC 1 A (ohmic) / 24 V
