If an error message is displayed, the rated values must be checked and corrected.
The guided commissioning procedure is repeated until the rated values have been
entered correctly. Aborting the guided commissioning procedure by pressing ESC key
should only be done by expert users because it may be possible that rated values
have not been entered or determined correctly.

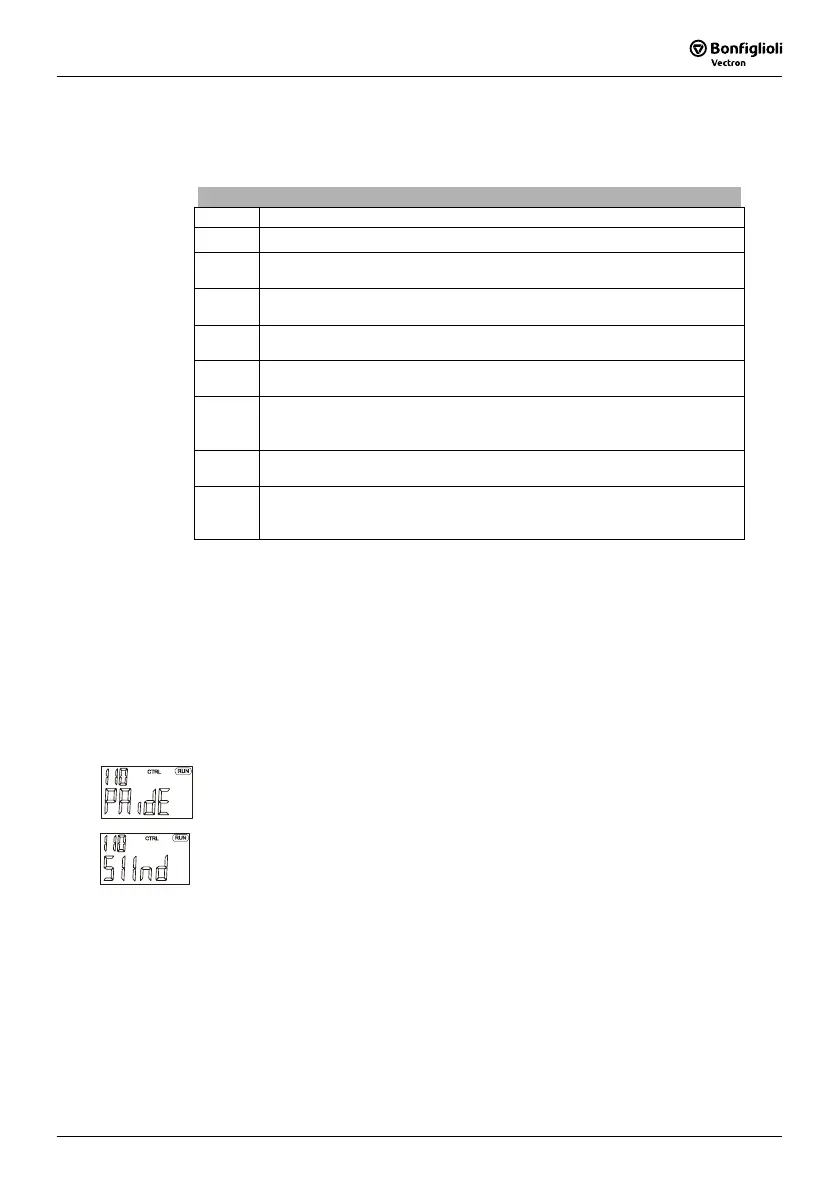

Error Messages
Code Measures / Remedy
SF000 No error message exists.
SF001
The value entered for parameter
Rated current 371 is too low. Correct the
value.
SF002
The value for parameter
Rated current 371 is too high, referred to pa-
rameters
Rated power 376 and Rated voltage 370. Correct the values.
SF003
The value entered for parameter
Rated cos phi 374 is wrong (greater than
1 or smaller than 0.3). Correct the value.
SF004
The calculated slip frequency is negative. Correct the values entered for
parameters
Rated speed 372 and Rated frequency 375.
SF005
The calculated slip frequency is too high.
Correct the values entered for parameters
Rated speed 372 and Rated fre-
quency
375.
SF006
The calculated total output of the drive is lower than the rated power. Cor-
rect the value entered for parameter
Rated power 376.
SF007
The set configuration is not supported by the guided commissioning. For
parameter
Configuration 30, select one of the configurations described in
these operating instructions.
7.2.6 Parameter identification
In addition to the parameterized rated data, the selected configuration demands
knowledge of further machine data not stated on the rating plate of the three-phase
machine. In addition to entering the rated motor parameters or as an alternative, the
required machine data can also be measured during the guided commissioning proc-
ess. The machine data are measured while the drive is at a standstill. The measured
values are entered in the parameter automatically either directly or after the calcula-
tion. The procedure and the duration of the parameter identification depend on the
type of machine connected and the device.
After checking the machine data entered, the guided commissioning switches to the
parameter identification.
• Confirm the display "PAidE" by pressing the ENT key.
During the parameter identification, the connected load is measured.
The safety functions of the frequency inverter avoid a release of the power unit if no
signal is present at digital input S1IND. If a signal was already applied at the begin-
ning of the guided commissioning, the "S1Ind" message is not displayed.
Note: The parameter identification feature of the frequency inverter requires
the presence of a signal at digital input S1IND for release of the power
unit.
