Operating Instructions ACTIVE06/07 149
06/07 Operating Instructions ACTIVE 149

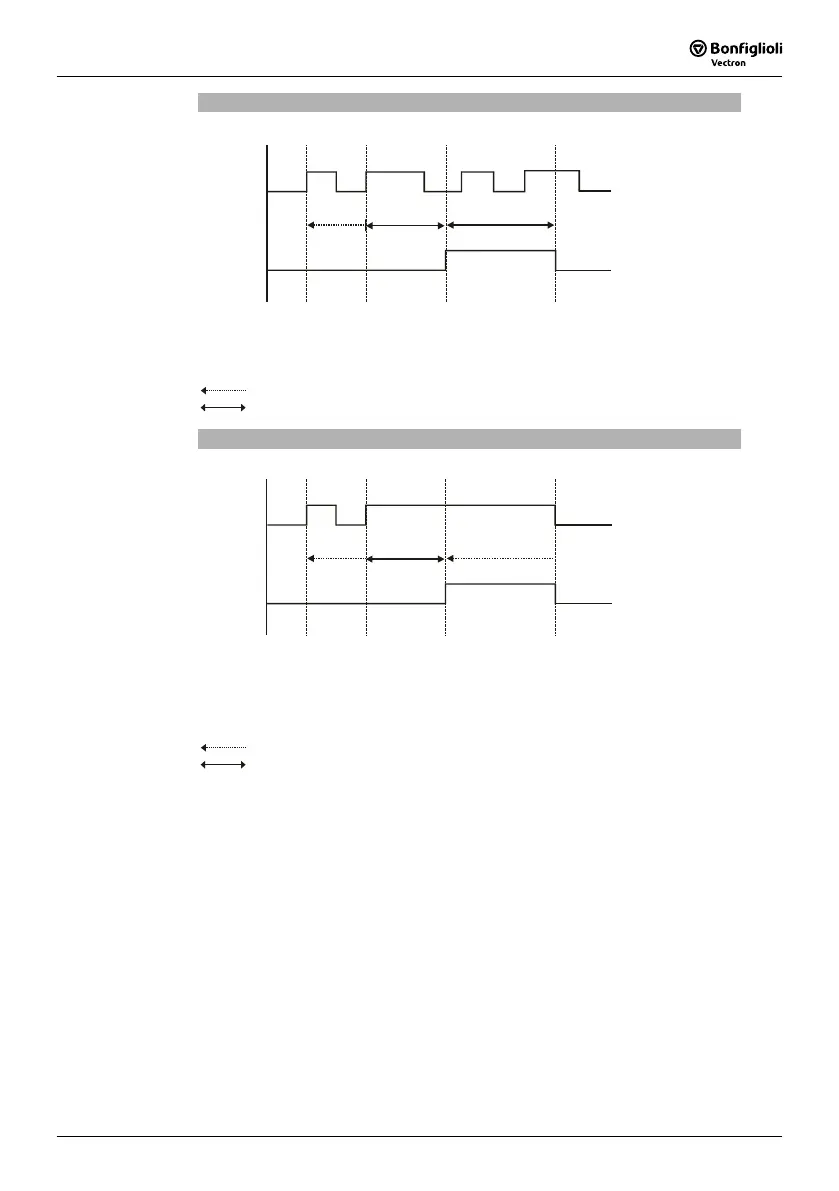

Retrigger, positive edge
Parameter
Operation mode Timer = 2
Input
Output
Time 2
Time 1Time 1
As soon as the positive signal edge is received at the input, time 1 is started. If a posi-
tive signal edge is detected within the delay, time 1 starts again. After the expiry of
the delay, the output signal is switched for the signal duration time 2.
: Time not run out completely
: Time run out completely
AND connection, positive edge
Parameter
Operation mode Timer = 3
Input
Output
Time 2
Time 1Time 1
As soon as the positive signal edge is received at the input, time 1 is started. If a posi-
tive signal edge is detected within the delay, time 1 starts again. After the expiry of
the delay, the output signal is switched for the signal duration time 2. Within the sig-
nal duration time 2, the output is switched off by the input signal. If the input signal is
present during the whole time 2, the output signal remains on in this time.
: Time not run out completely
: Time run out completely
