Labels and Areas
Date and Time
54
BMP71 User’s Manual

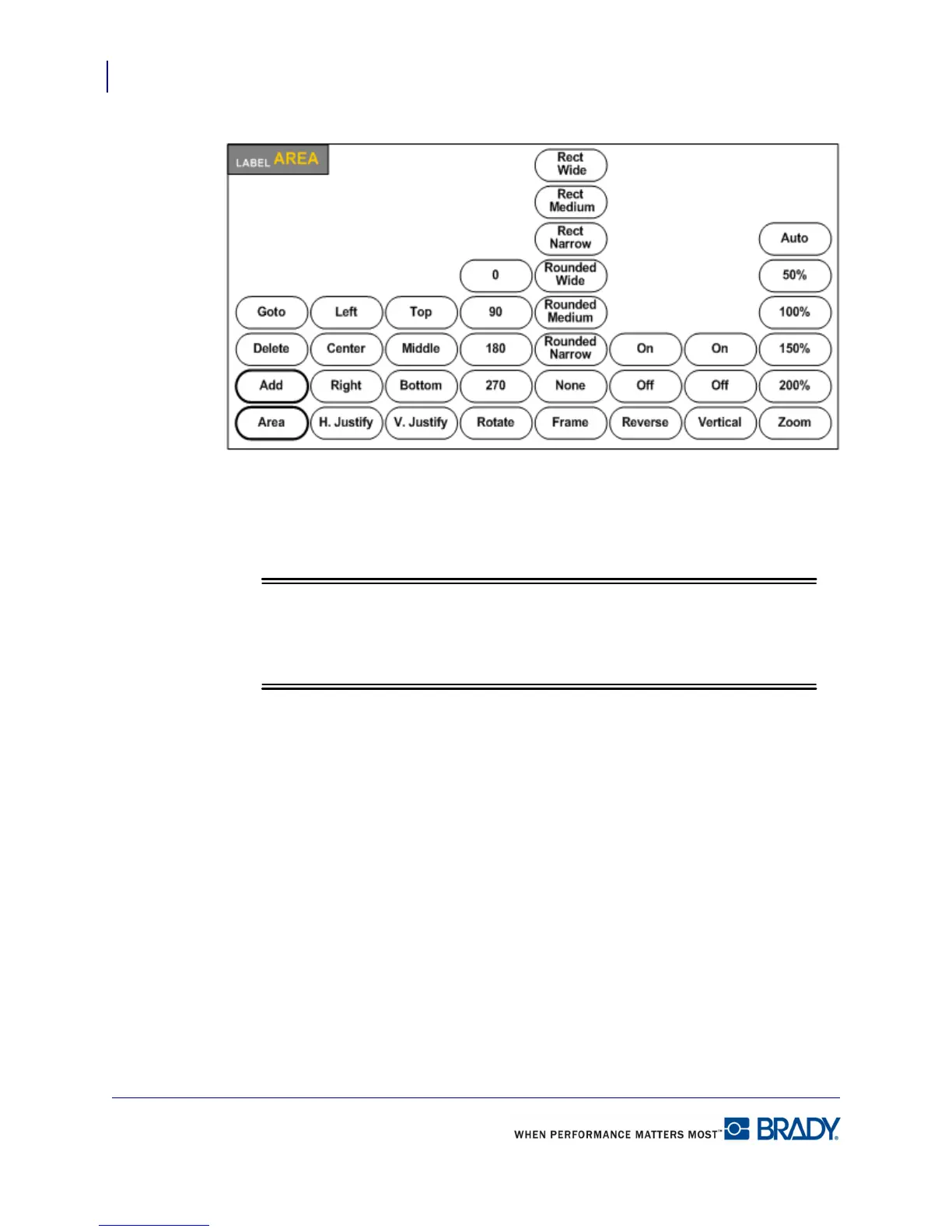

Figure 20 • Area menu options
Areas are used to apply different formatting (such as justification, rotation, and frames) to
different parts of a single label. Areas can only be added to continuous media set to auto length
mode. However, area formatting can be applied to die cut labels that have pre-defined areas.
You cannot set a fixed length of an area on a label that has multiple areas. The size
of the area is based on the amount of data entered and the font size of that data.
The number of areas, and the font size used on the first line of data in those areas, repeat on a
new label when one is added to the file.
Only the current area displays on the editing screen. Use Print Preview (see page 81) to view
the label with all its areas.
