Cleaning the Printer
Upper Guide and Cut Pad
Overtime, dust and adhesive builds up on the upper guide and the cut pad. These parts can be
removed for cleaning.

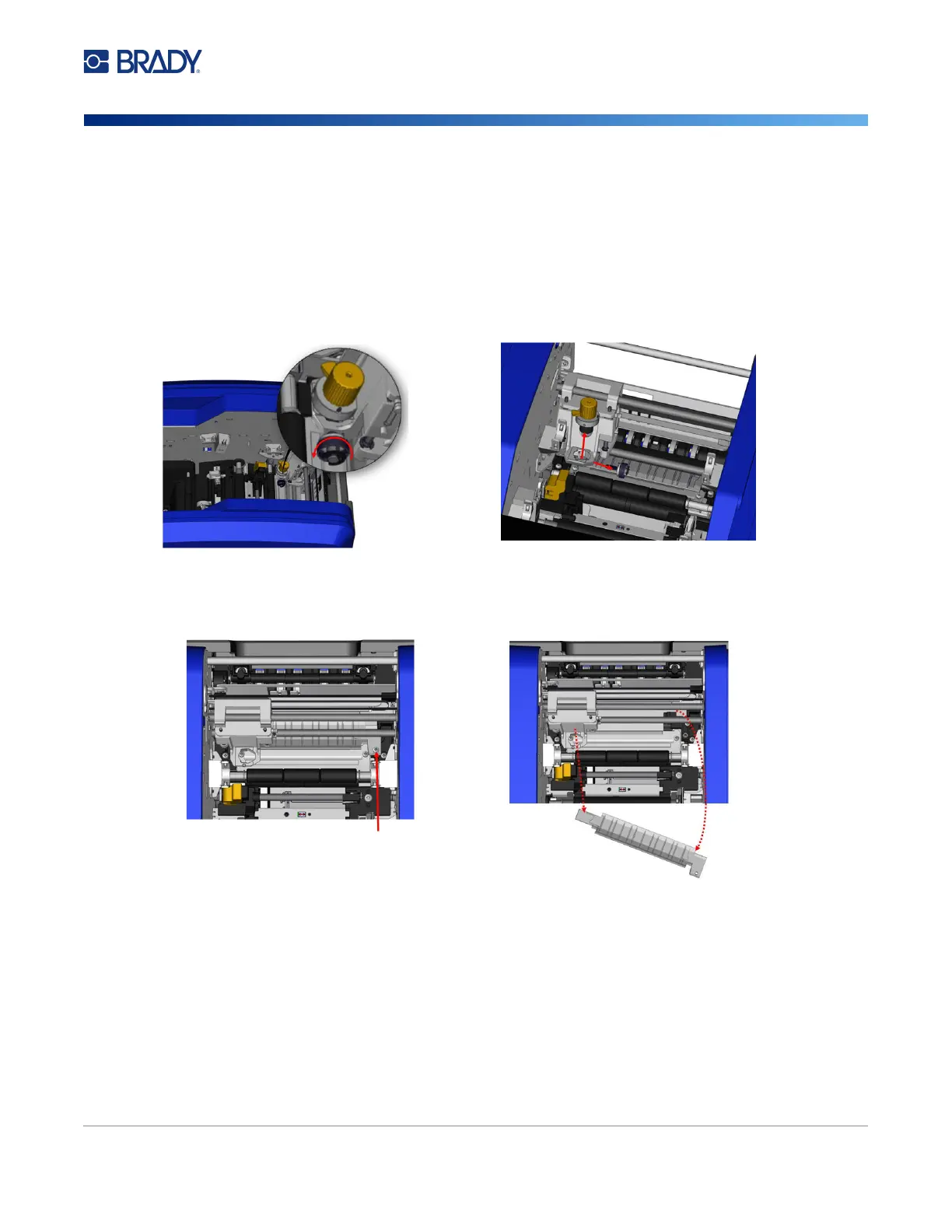

To remove the Upper Guide and Cut Pad:
1. Unscrew the XY plotter thumbscrew
completely to remove it.
2. Grasp the cutter module and gently pull up to
remove it from the carriage.
3. Use a magnetic screw driver (so screws
do not drop into the printer) remove the
upper guide screw.
4. To remove the upper guide, gently loosen the
unscrewed end of the upper guide, then swing
the guide out from under the XY cutter carriage.
5. Use a moistened wipe from the cleaning kit to clean the upper guide.
