How to Attach Adapters with a Ring Lock
①
②

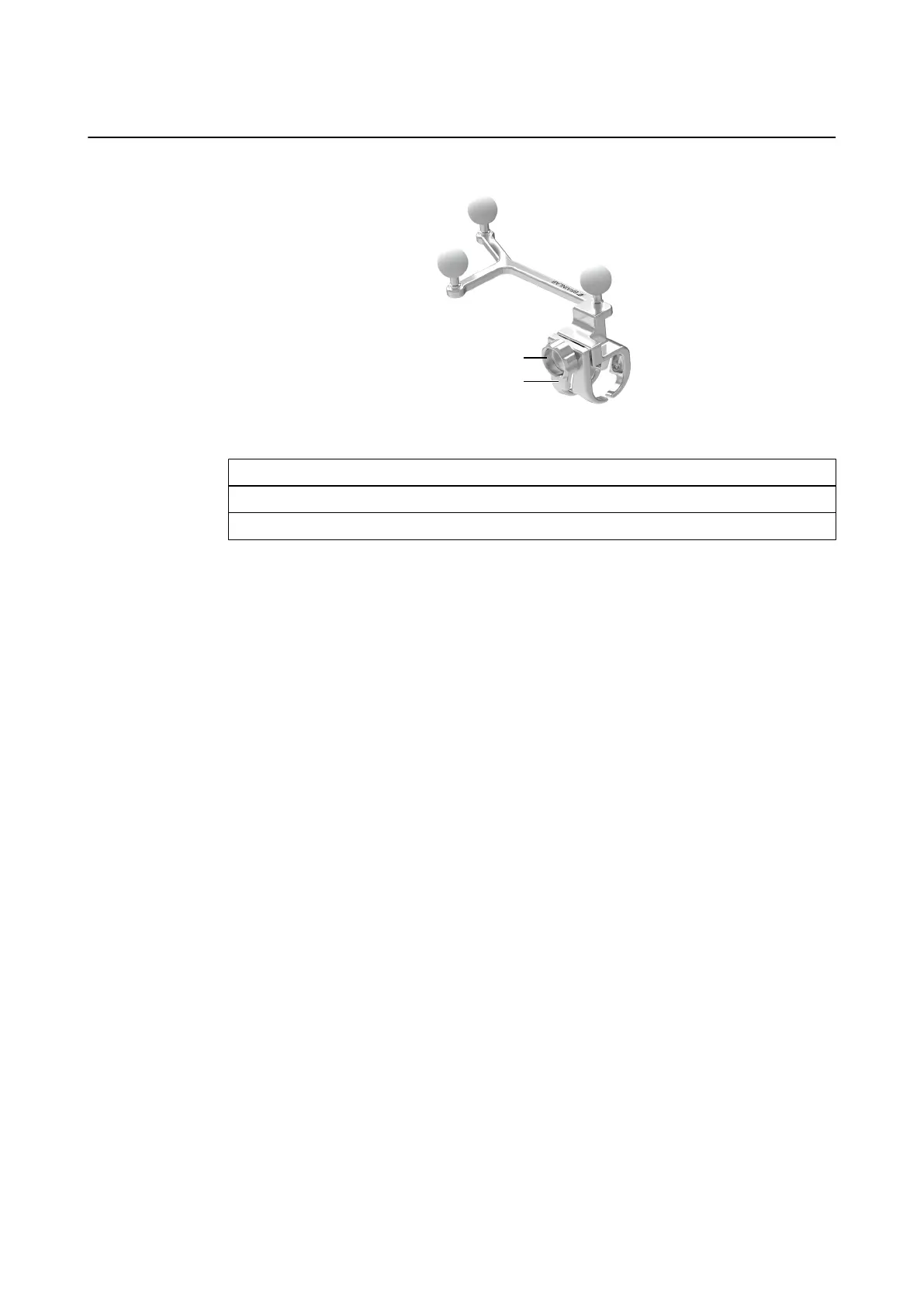

Figure 52
Step
1. Place the Ultrasound Adapter onto the ultrasound probe.
2. Tighten the screw ① until the ring ② fits securely onto the probe.
Attaching the Standard Fit Adapter to the Probe
