100-214-276 Rev. 3 4-5
2000X aed Actuator Chapter 4: Installation and Setup
Instruction Manual Handling and Unpacking

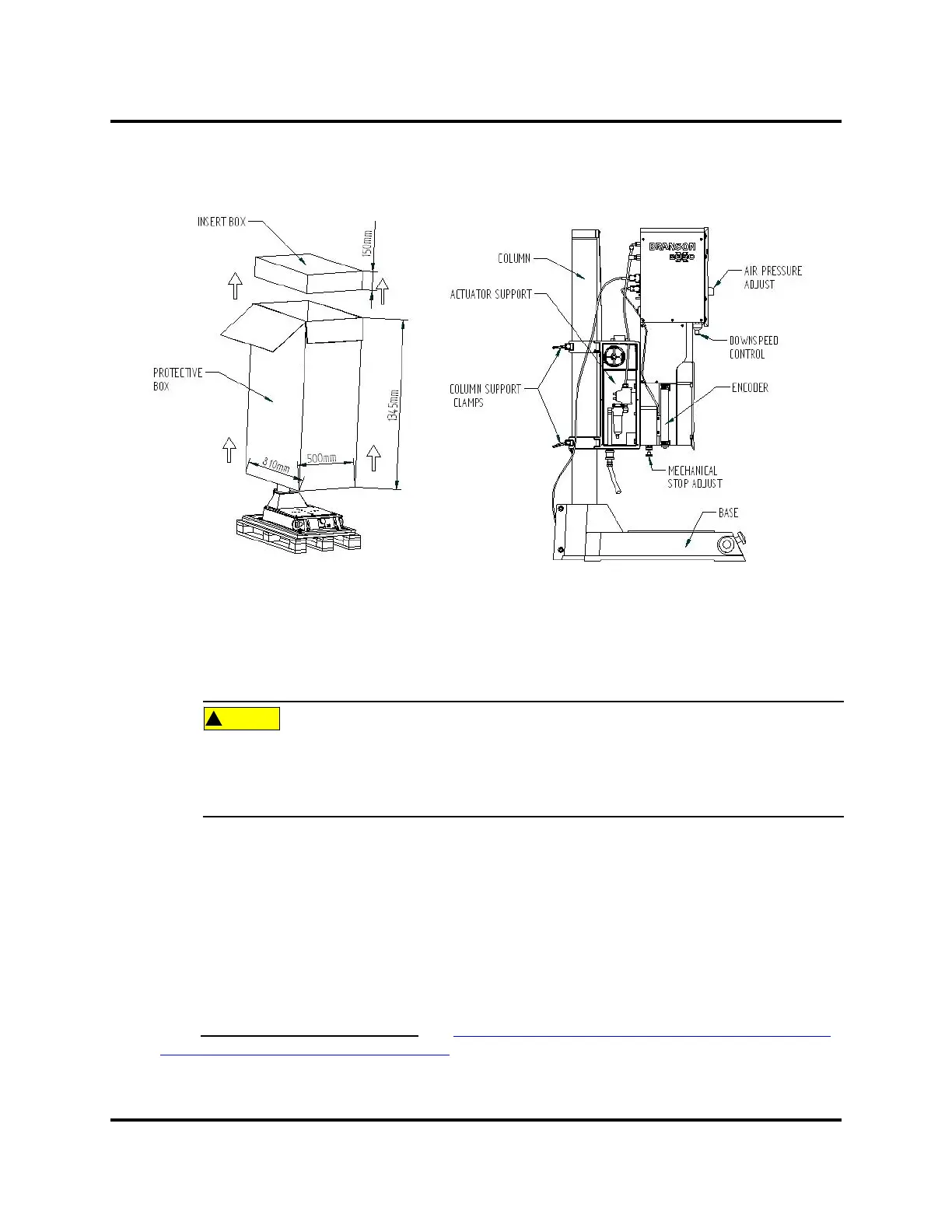

Figure 4.3 Unpacking the Stand (Actuator on a Base) and Left-side View of Stand of the 2000X aed
15kHz Actuator
1. Move the shipping container close to the intended installation location, leave it on the floor.
2. Open the top of the box. Remove the insert from the top of the protective box, which may contain
the booster, converter, and the toolkit.
3. Remove the staples at the bottom of the protective box. Lift the protective box off the pallet.
The column and column support are under spring tension from the counterbalance spring. Do
NOT attempt to disassemble the column from the stand, but always keep the column support
clamped together. When making height adjustments, carefully and slowly release the clamps
to control the motion, and hold the stand to prevent sudden movements or injury.
4. Cut the two packing straps around the base and pallet. Pry off the two wooden shipping blocks (to
the rear of the base) which prevent the base from sliding on the pallet.
5. The stand can now be moved into its desired location by sliding it off the pallet. Stands have a lifting
hook for the use of overhead hoists to lift the assembly in place.
6. Remove the block of wood between the base and the column support by carefully loosening the
two column clamps (allowing the actuator to rise slightly, but not allow sudden movements) and
then cutting the shipping tape on the block of wood. RETIGHTEN THE COLUMN CLAMPS.
7. Unpack the toolkit from the insert box, and other parts (converter, booster, etc.) that may have
shipped with the stand. Save the packing material.
8. Go to Take Inventory of Small Parts.
See Table 4.1 ’Small Parts included (=x) with Power Supply
and/or Actuator Assemblies’ on page 4 - 7.
DOC EXPIRES 12PM 7/24/2012. Article or Material must comply with the requirements
stipulated by RoHS in its current version
