4-18 100-214-276 Rev. 3
Chapter 4: Installation and Setup
Installation Steps

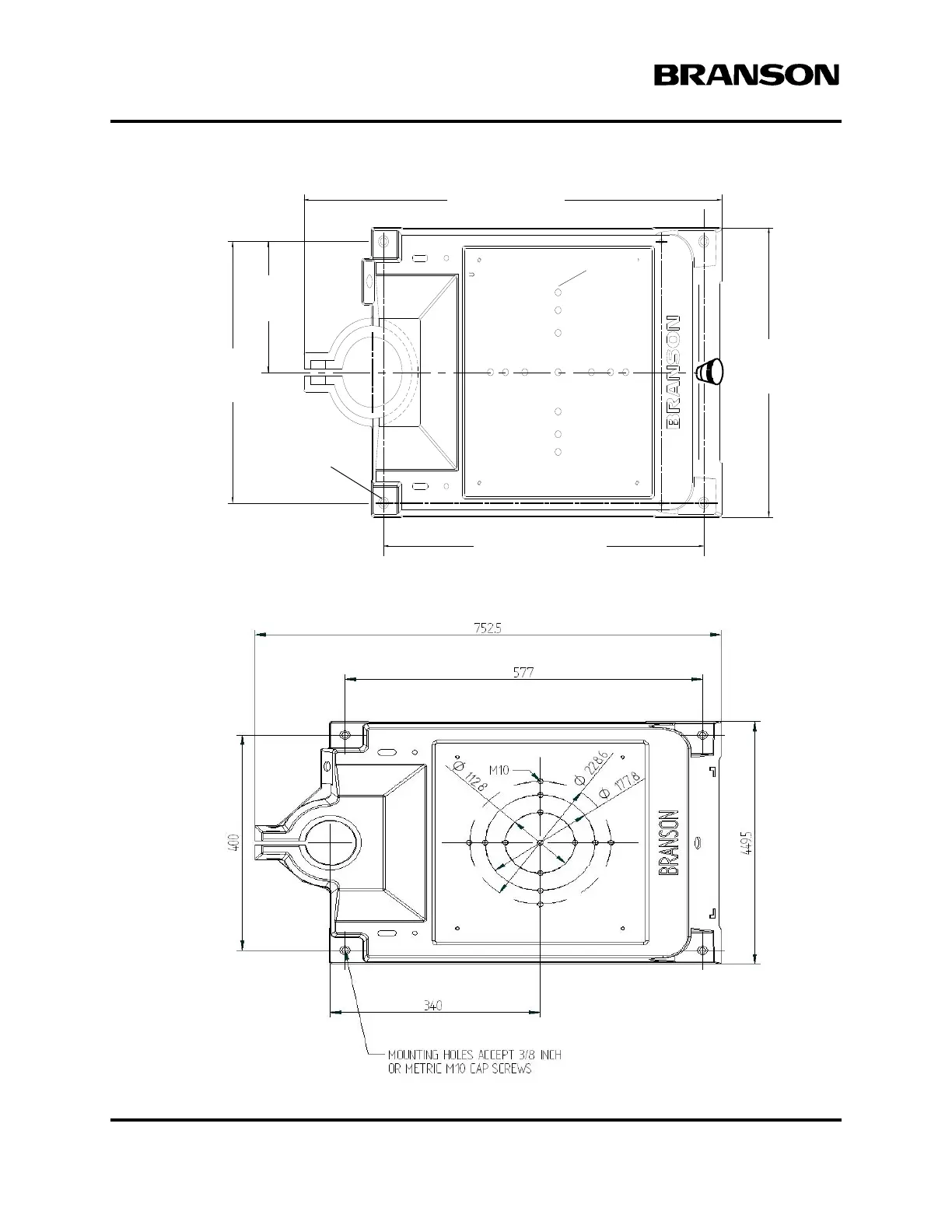

Figure 4.10 Base Mounting Centers
Figure 4.11 Base Mounting Centers Dimensional Drawing for 2000X aed 15kHz Actuator
21.31 in / 541 mm
Mounting Holes
accept 3/8 inch
or metric M10
cap screws
14.75 in /
375 mm
7.37 in /
187 mm
16.5 in /
419 mm
M10
M
28.0 in / 711 mm
DOC EXPIRES 12PM 7/24/2012. Article or Material must comply with the requirements
stipulated by RoHS in its current version
