100-214-276 Rev. 3 4-21
2000X aed Actuator Chapter 4: Installation and Setup
Instruction Manual Installation Steps

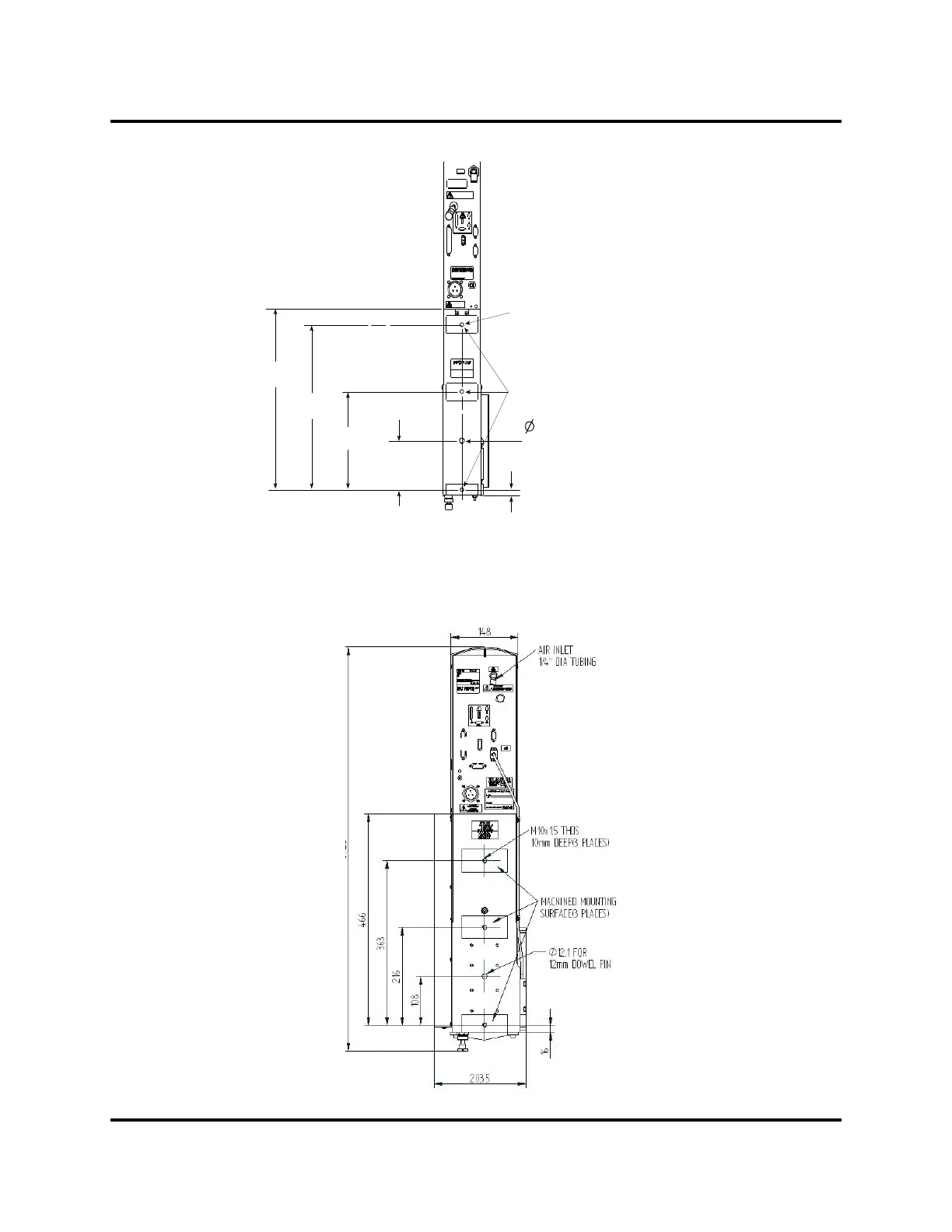

Figure 4.13 Rear view of Actuator, showing Mounting Surface, Bolt and Guide Pin locations
Figure 4.14 Rear view of Actuator, showing Mounting Surface, Bolt and Guide Pin locations for 2000X aed
15kHz Actuator
For 12 mm
Dowel Pin
.477
M10 x 1.5 THDS
10 mm deep
(3 places)
4.25
108 mm
8.50
216 mm
14.30
363 mm
15.63
397 mm
50
13 mm
Machined mounting
surfaces (3 places)**
Rear view of ae/aed actuator is shown. Although
other actuators will vary in height, referenced
dimensions will be the same for all models.
**These three mounting surfaces are flat
within 0.004 in. (0.1mm) TIR, in a tolerance
zone of 16 x 3.5 in. (410 x 90 mm). The
surface to which the actuator is mounted
must also have the same flatness tolerance.
