REAR AXLE
KUKJE MACHINERY CO., LTD.
108
3. DISASSEMBLING AND SERVICING
*. PART NAME
1) Bolt 2) Nut

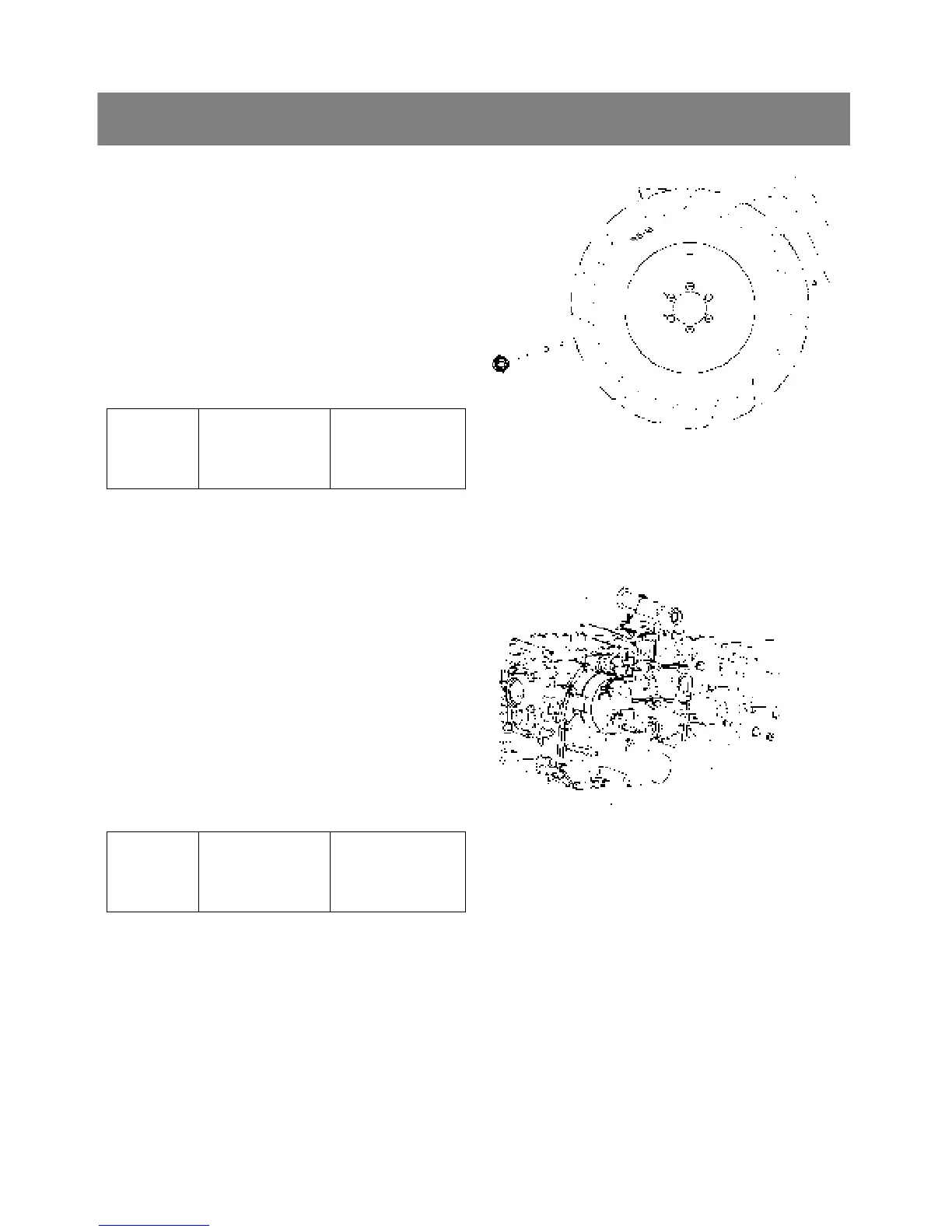

< Rear wheel >
1. Place a jack under the transmission case.
2. Loosen the rear wheel bolt(1) and nut(2).
3. Take out the rear wheel.
◈ Important
9 When re-fitting or adjusting a wheel, tighten the
bolts to the following torques and then recheck
them after driving the tractor approximately
200m (200 yards).
Tightening
torque
Rear wheel
bolt and nut
108 to 125 Nm
11.0 to 12.7 kgfm
79 to 92.2 ft-lbs
< Rear axel case >
1. Remove the brake rod(1).
2. Disconnect the differential lock rod(2) at the
pedal side.
3. Remove the rear axle case mounting screws and
nuts then separate the rear axle case(3) from the
differential case.
▷ Reassembling
9 Apply gasket to joint face of the rear axle case
and differential gear case after removing the
water, oil and stuck gasket.
Tightening
torque
Rear axle case
mounting screw
48.1 to 55.8 Nm
4.9 to 5.7 kgfm
35.5 to 41.2 ft-lbs
*. PART NAME
1) Brake rod 2) Differential lock rod
3) Rear axle case
(1)
(2)
