STEERING
KUKJE MACHINERY CO., LTD.
127

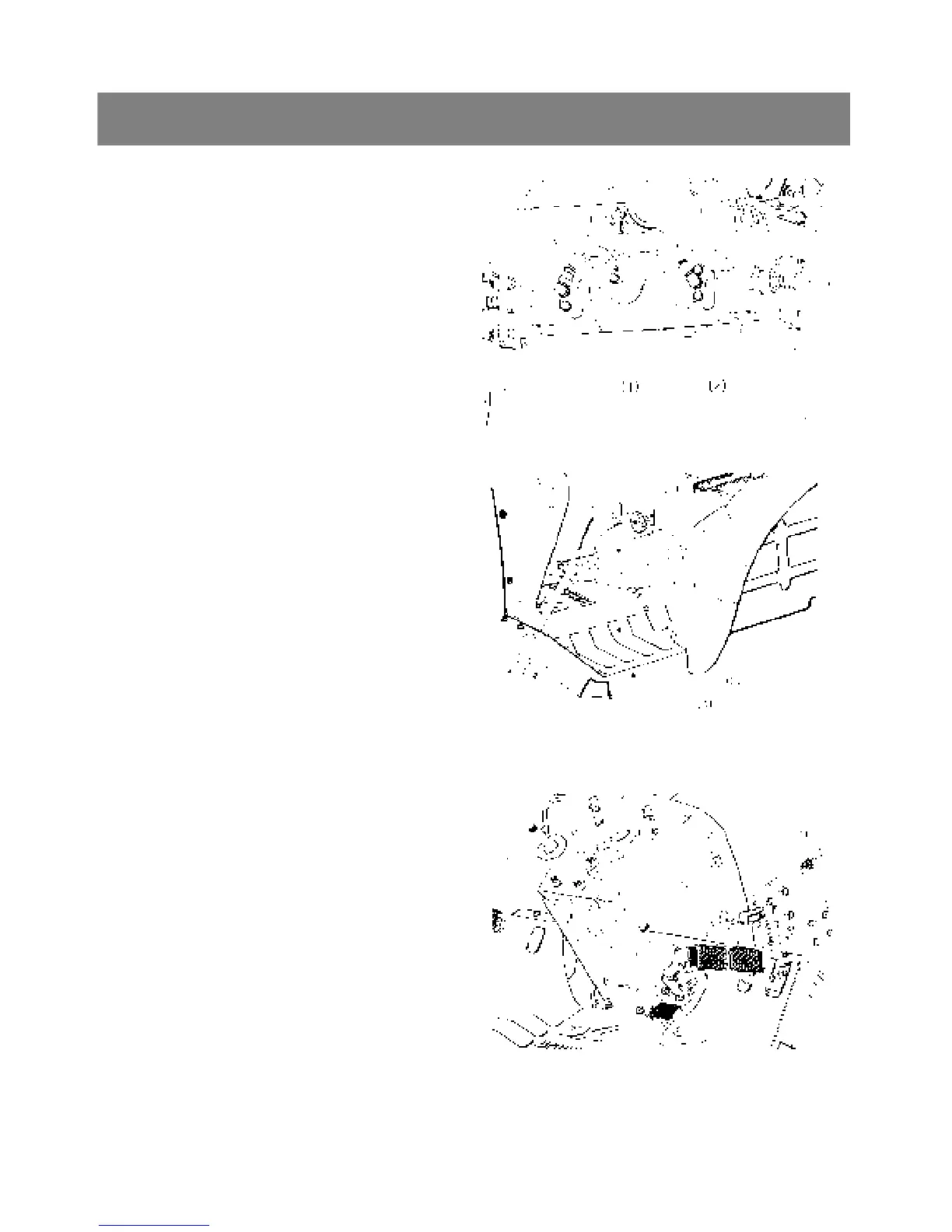

4. CHECKING, DISASSEMBLING AND SERVICING
< Hydraulic hose >
1. Remove the hydraulic hose(1) from the front
cylinder assy(2).
*. PART NAME
1) Hydraulic hose 2) Front cylinder assy
< Step >
1. Remove the lowering speed adjusting knob(3).
2. Remove the seat under cover(1).
3. Remove the rubber mat(2).
4. Remove the clutch spring.
5. Remove the fuel tank frame set screws and fuel
tank stay.
6. Remove the left hand step(4) while lifting the
fuel tank frame.
*. PART NAME
1) Seat under cover 2) Rubber mat
3) Lowering speed adjusting knob
4) Step(LH)
< Steering gear box assembly >
1. Remove the parking brake lever(1) and speed
control set lever(2).
2. Remove the steering gear box assembly(3) from
the center frame.
*. PART NAME
1) Parking brake lever 2) Speed control set lever
3) Steering support assy
