STEERING
KUKJE MACHINERY CO., LTD.
128
4. CHECKING, DISASSEMBLING AND SERVICING
< Fuel tank >
1. Disconnect the fuel hose(1) at the fuel filter side,
then drain fuel completely.
2. Remove the steering bracket stay(7).
3. Disconnect the hazard unit, controller, starter
relay and regulator connectors and remove the
cable for fuel gauge.
4. Disconnect the overflow hoses(5) of fuel line.
5. Remove the tank frame(2) with fuel tank(3).
6. Remove the battery.
7. Disconnect the hydraulic hose(6) and remove the
battery stay with oil cooler(4).
▶ NOTE
1) For fastening hydraulic pipe nut, use two
wrenches. Hold the fitting with a wrench, turn
the pipe nut with another wrench to avoid
damage at fittings.
Delivery pipe nut for
HST
34.3 to 39.2 Nm
3.5 to 4.0 kgfm
25.3 to 28.9 ft-lbs
Oil cooler pipe nut
50.0 to 57.9 Nm
5.1 to 5.9 kgfm
36.9 to 42.8 ft-lbs
Tightening
torque
Delivery pipe nut for
power steering
64.7 to 75.5 Nm
6.6 to 7.7 kgfm
47.9 to 55.3 ft-lbs

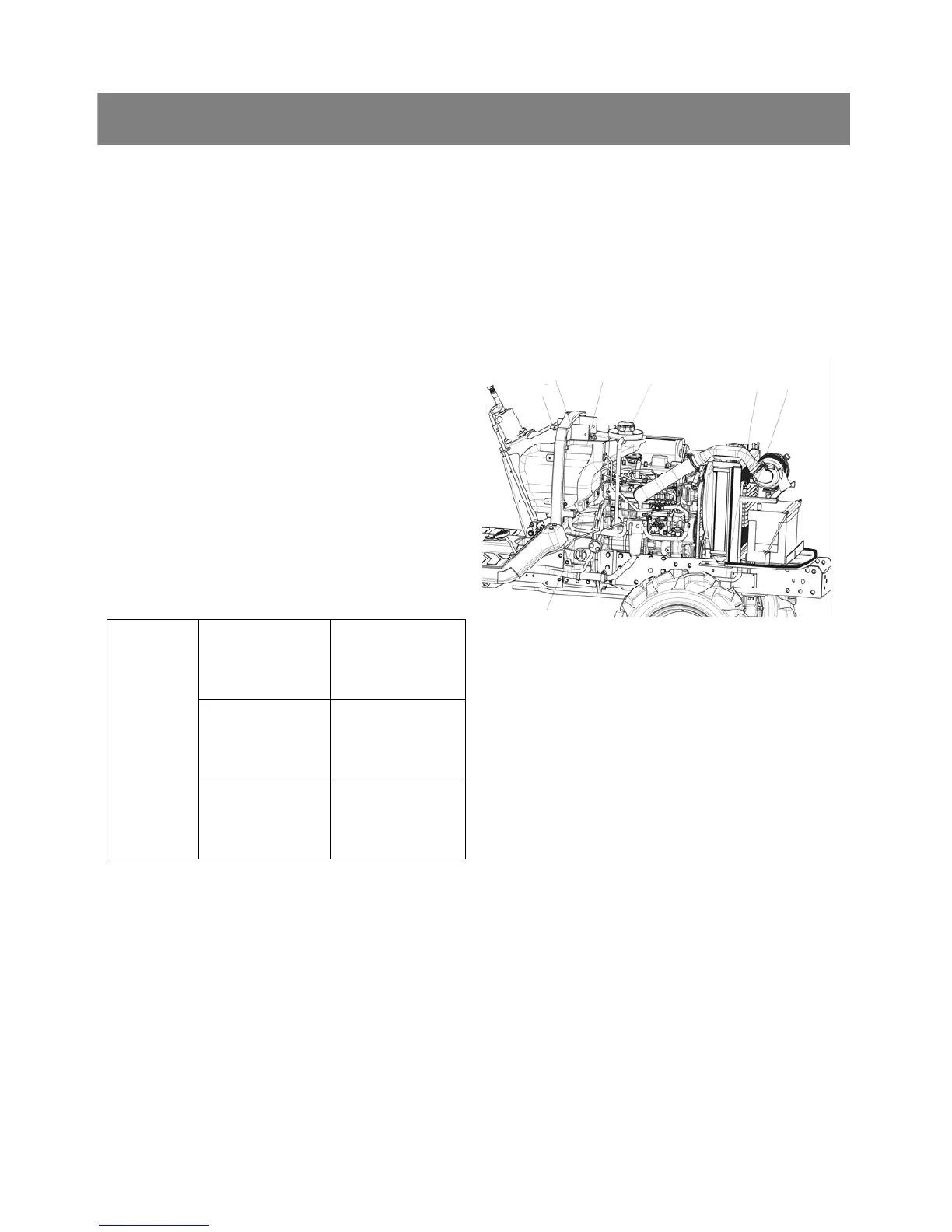

*. PART NAME
1) Fuel hose 2) Fuel tank frame
3) Fuel tank 4) Oil cooler
5) Overflow hose 6) Hydraulic hose
7) Steering bracket
(1)
(7)
(2)
(3) (5)
(6)
(4)
