STEERING
KUKJE MACHINERY CO., LTD.
129
4. CHECKING, DISASSEMBLING AND SERVICING

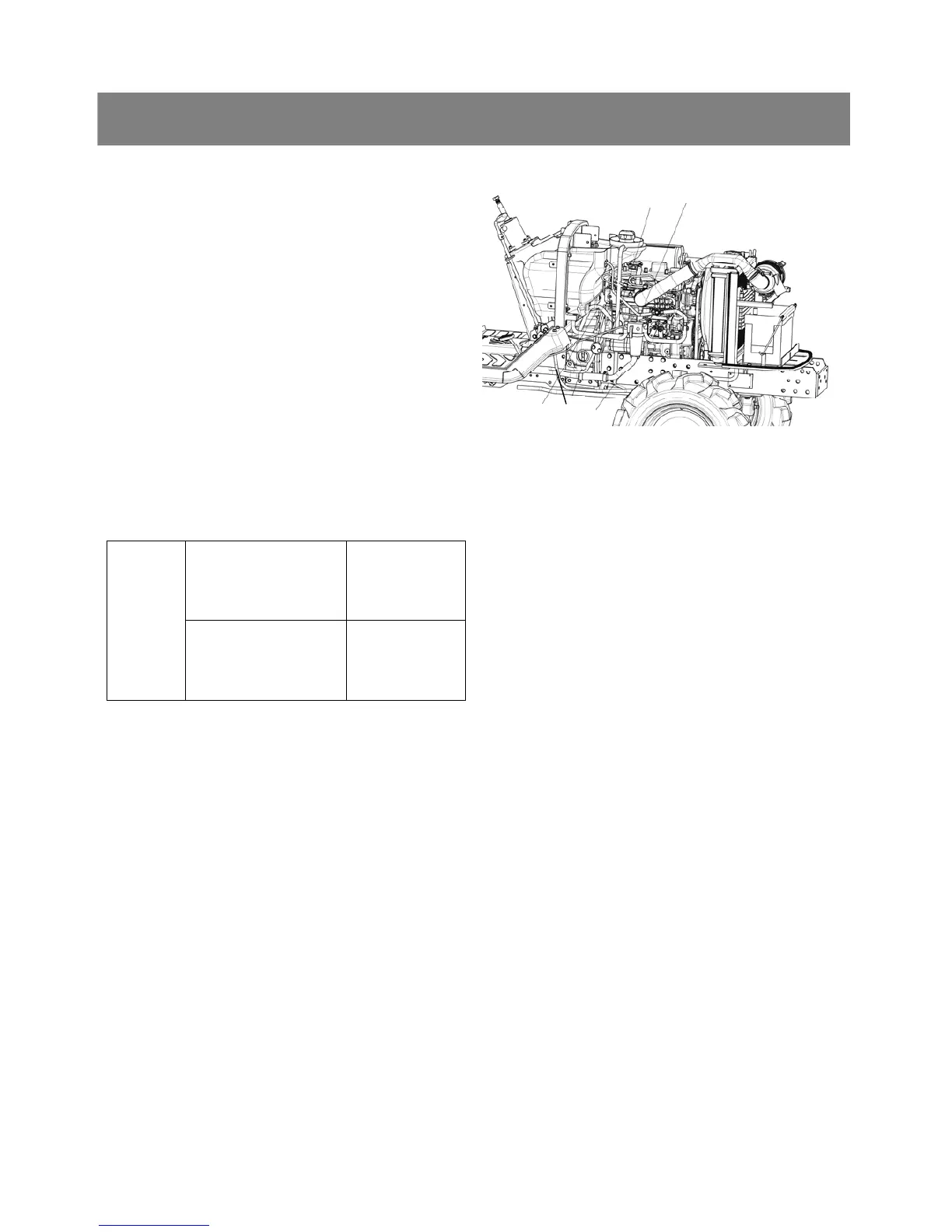

*. PART NAME
1) Power steering delivery pipe
2) Suction pipe
3) Power steering delivery pipe
4) Fuel return hose
5) Accelerator rod
< Steering assembly >
1. Remove the seat under cover, rubber mat and
side step LH.
2. Disconnect the accelerator rod(4).
3. Disconnect the power steering delivery pipe(1).
4. Remove the power steering delivery pipe(3) and
disconnect the power steering return pipe.
5. Remove the power steering assembly from the
center frame.
▶ NOTE
1) For fastening hydraulic pipe nut, use two
wrenches. Hold the fitting with a wrench, turn
the pipe nut with another wrench to avoid
damage at fitting installed part.
Delivery pipe nut
for power steering
64.7 to 75.5 Nm
6.6 to 7.7 kgfm
47.9 to 55.3 ft-lbs
Tightening
torque
Power steering
assembly mounting screw
77.5 to 90.1 Nm
7.9 to 9.2 kgfm
57.2 to 66.5 ft-lbs
(1) (3)
(2)
(5)
(4)
