4. CHECKING, DISASSEMBLING AND SERVICING

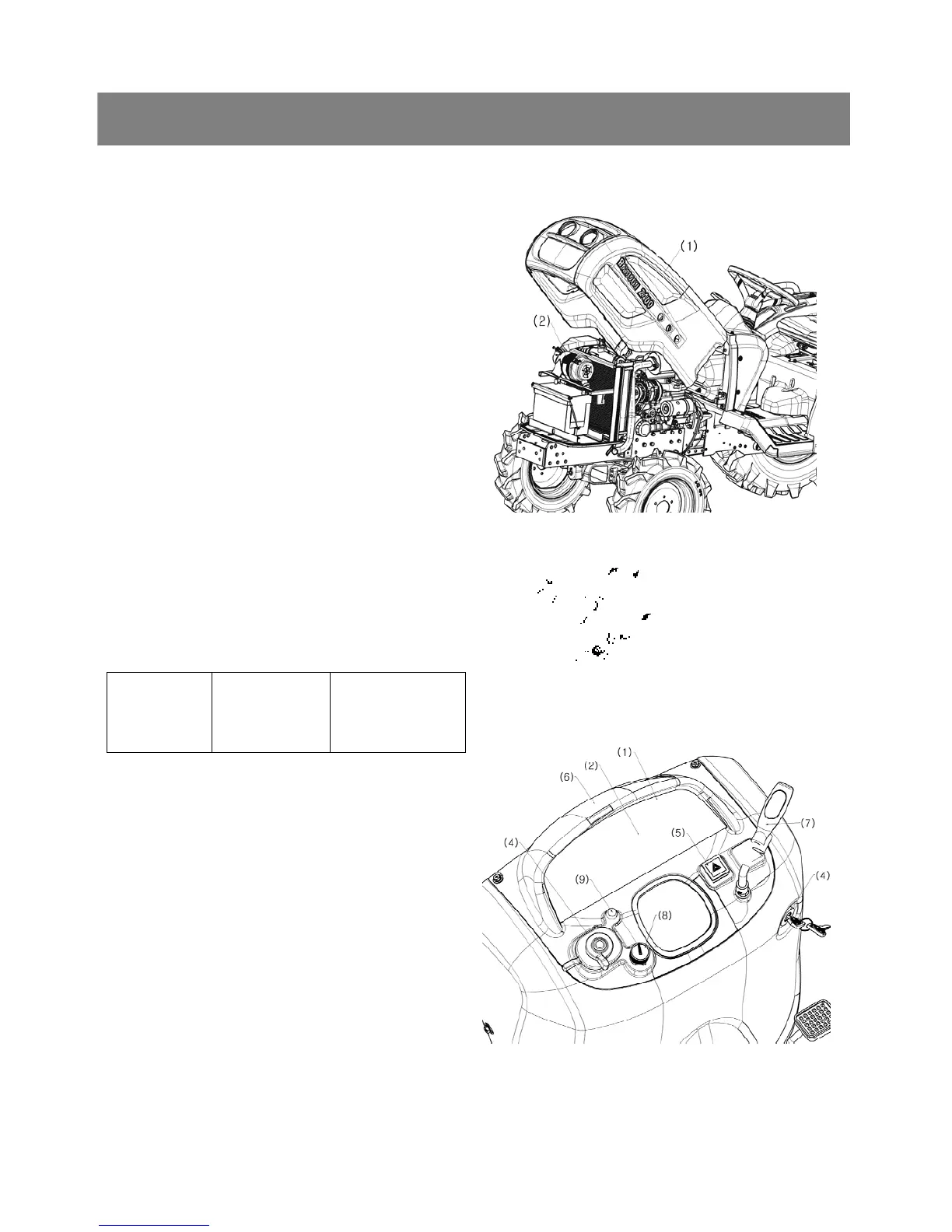

< Hood and battery cord >
1. Open the hood(1).
2. Disconnect the battery grounding cord(2).
3. Disconnect the head light connectors and
remove the hood(1).
▶ NOTE
1) When disconnecting the battery cords,
disconnect the grounding cord first. When
connecting the battery cords, connect the
positive cord first.
*. PART NAME
1) Hood
2) Battery grounding cord
< Steering wheel >
1. Remove the steering wheel cap.
2. Remove the steering wheel mounting nut and
remove the steering wheel with a steering wheel
puller.
Tightening
Torq ue
Steering wheel
mounting nut
48.1 to 55.9 Nm
4.9 to 5.7 kgfm
35.1 to 41.2 ft-lbs
< Meter panel and panel under cover >
1. Tap out the spring pin and remove the hand
accelerator lever(7).
2. Remove the panel under cover(6).
3. Open the meter panel(1) and disconnect the
meter panel connector(2).
4. Disconnect the combination switch connector(3),
main switch connector(4), hazard switch
connector(5), light switch(8) and emergency stop
switch(9). And then remove the meter panel.
*. PART NAME
1) Meter panel 2) Meter panel connector
3) Combination switch connector
4) Main switch connector 5) Hazard switch connector
6) panel under cover 7) Hand accelerator lever
8) light switch 9) Emergency stop switch
To Next Page
