TRANSMISSION
KUKJE MACHINERY CO., LTD.
78
5. CHECKING, DISASSEMBLING AND SERVICING

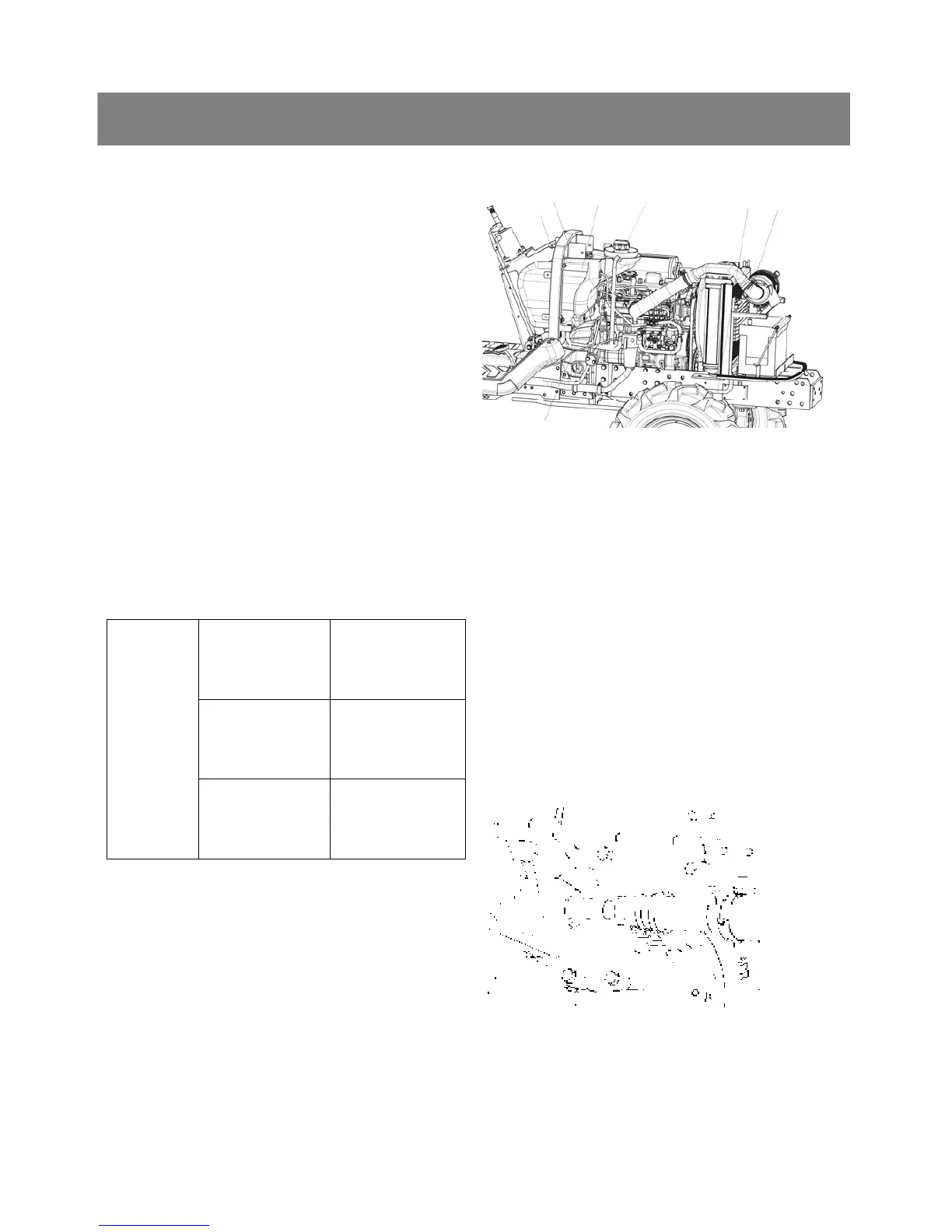

*. PART NAME
1) Fuel hose 2) Fuel tank frame
3) Fuel tank 4) Oil cooler
5) Overflow hose 6) Hydraulic hose
7) Steering bracket
< Fuel tank >
1. Disconnect the fuel hose(1) at the fuel filter side,
then drain fuel completely.
2. Disconnect the hazard unit, controller, starter
relay and regulator connectors and remove the
cable wire for fuel gauge.
3. Disconnect the overflow house(5) of fuel line.
4. Loosen the steering bracket(7).
5. Remove the tank frame(2) with fuel tank(3).
6. Remove the battery.
7. Disconnect the hydraulic hose(6) and remove
the battery stay with oil cooler(4).
▶ NOTE
1. For fastening hydraulic pipe nut, use two
wrenches. Hold the fitting with a wrench, turn
the pipe nut with another wrench to avoid
damage at fitting installed part.
Delivery pipe nut for
HST
34.3 to 39.2 Nm
3.5 to 4.0 kgfm
25.3 to 28.9 ft-lbs
Oil cooler pipe nut
50.0 to 57.9 Nm
5.1 to 5.9 kgfm
36.9 to 42.8 ft-lbs
Tightening
torque
Delivery pipe nut for
power steering
64.7 to 75.5 Nm
6.6 to 7.7 kgfm
47.9 to 55.3 ft-lbs
< Propeller shaft cover and coupling >
1. Loosen the clamp and slide the propeller shaft
cover(1) to the rear.
2. Tap out the spring pin(2) and then slide the
coupling(3) to the rear.
▷ Reassembling
9 Apply grease to the spline of the propeller shaft
and coupling.
*. PART NAME
1) Propeller shaft cover
2) Spring pin 3) Coupling
(1)
(7)
(2)
(3) (5)
(6)
(4)
(1)
(2)
(3)
