TRANSMISSION
KUKJE MACHINERY CO., LTD.
85

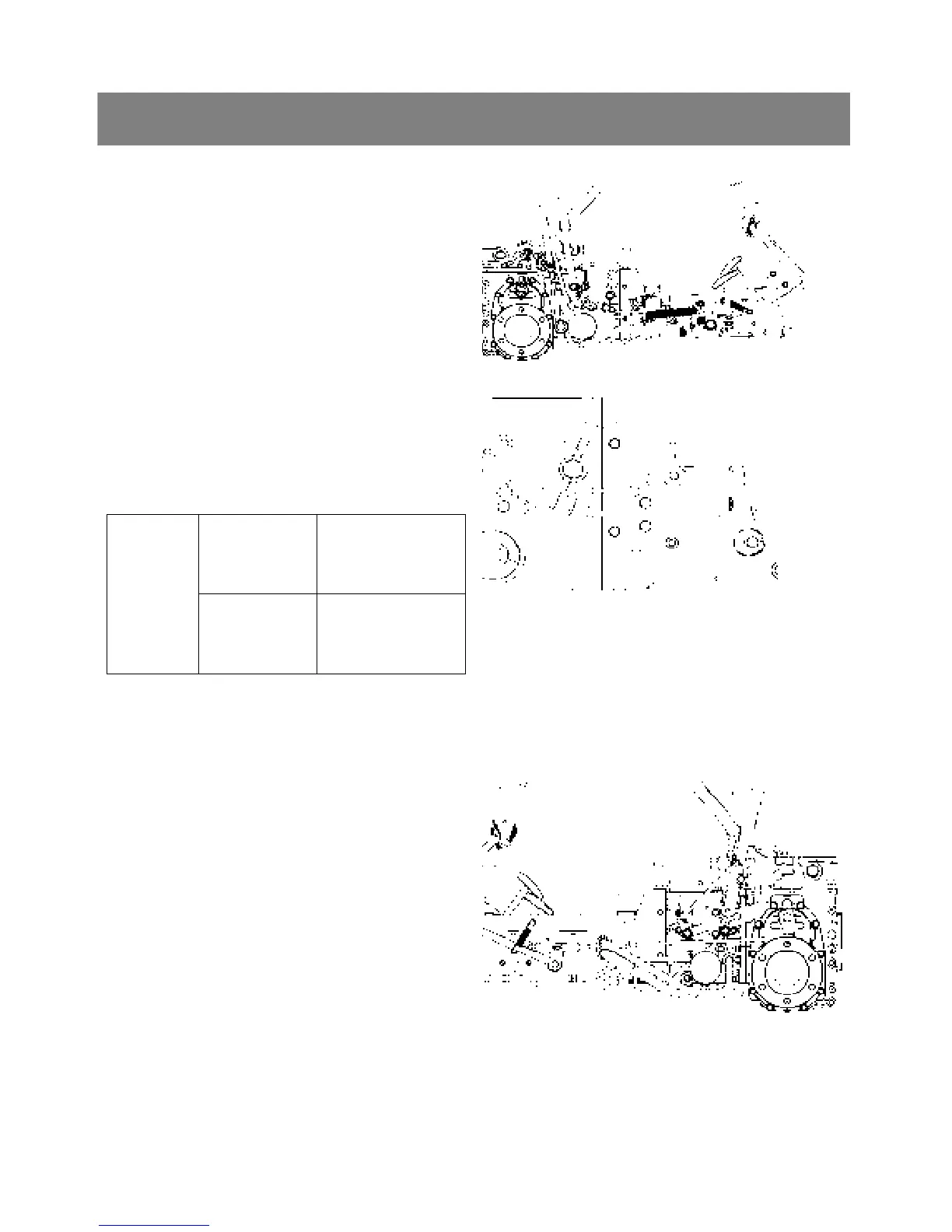

5. CHECKING, DISASSEMBLING AND SERVICING
*. PART NAME
1) Pipe joint bolt
2) HST safety switch with neutral rod
3) 3P delivery pipe 4) HST delivery pipe
5) HST safety switch 6) Neutral rod
7) Neutral bracket
< Delivery pipes and HST safety switch holder >
1. Remove the pipe clamps and delivery pipe joint
bolt(1).
2. Disconnect the differential lock rod.
3. Remove the accelerator rod and pedal, and then
remove the delivery pipe.
4. Remove the HST neutral bracket holder with
neutral rod(2).
5. Disconnect the HST delivery pipe(4)
◈ Important
¾ When HST safety switch(5) has been removed, be
sure to adjust the length A.
¾ Length A : 8 to 9 mm (0.31 to 0.35 in.)
Joint bolt (3P
delivery pipe)
23.5 to 27.5 Nm
2.4 to 2.8 kgfm
17.4 to 20.3 ft-lbs
Tightening
torque
HST delivery
pipe nut
34.3 to 39.2 Nm
3.5 to 4.0 kgfm
25.1 to 28.7 ft-lbs
< Hydraulic pipes and others >
1. Remove the brake rod LH(1).
2. Remove the connecting pipe(2).
3. Remove the HST suction pipe(3). (HST type only)
4. Remove the hydraulic oil filter assembly(4) and
pipe(5),(6). (HST type only)
*. PART NAME
1) Brake rod LH 2) Connecting pipe
3) HST suction pipe 4) Hydraulic oil filter assembly
5) Return pipe
(Oil cooler to filter)
6) Pipe
(Filter to HST)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(1)
(2) (3)
(5) (6)
(4)
