Brocade DCX 8510-4 Backbone Hardware Reference Manual 85
53-1002177-06
Transceiver removal and replacement
5

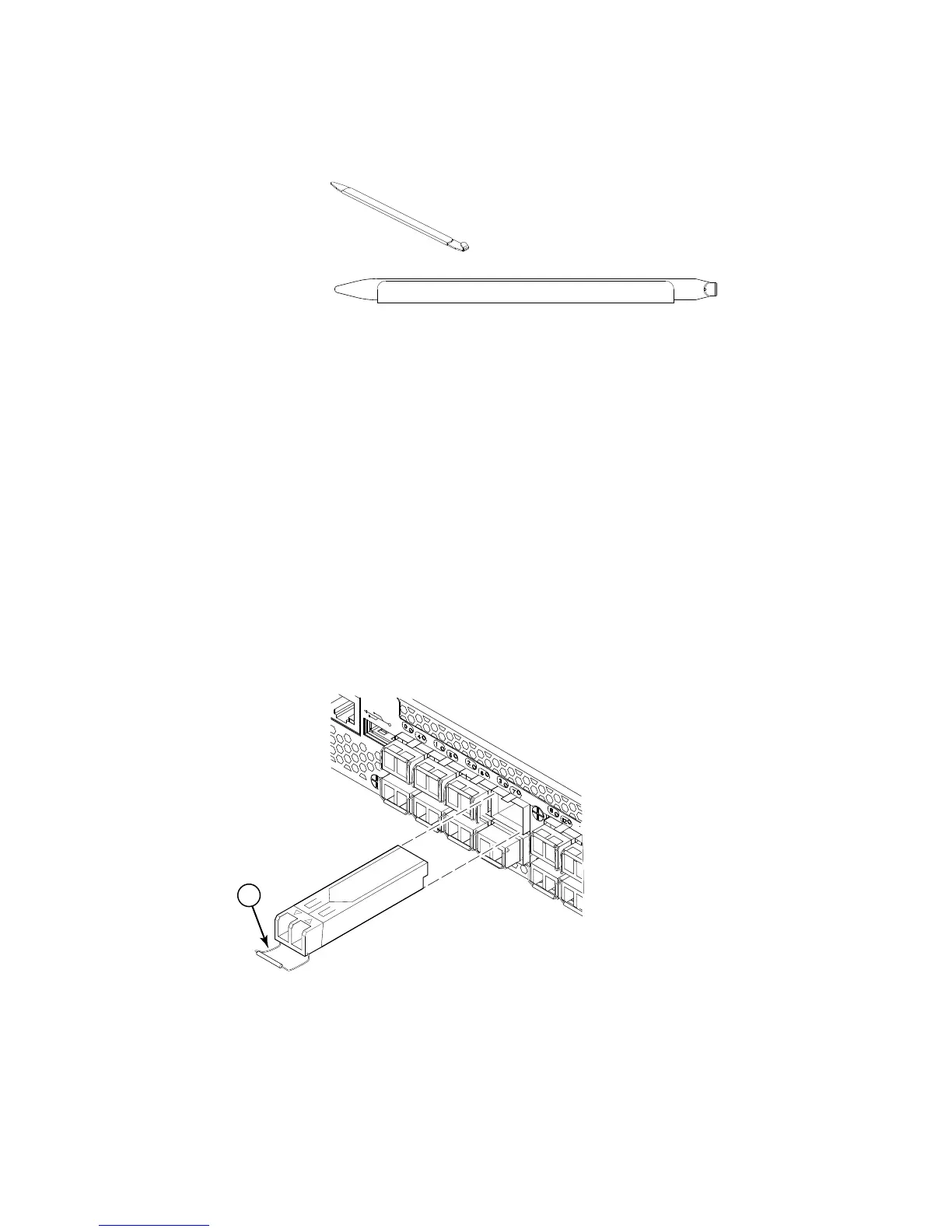

FIGURE 28 Optical transceiver (SFP+) extraction tool
Removing an SFP+ transceiver
For the following procedure refer to Figure 29 and Figure 30.
Complete the following steps to remove an SFP+ transceiver.
1. Remove any cables that are inserted into the transceiver. Use the extraction tool to open the
cable latching mechanism.
2. Using the hooked end of the tool, pull the bail (wire handle) away from its pivot point and out,
sliding the transceiver out of the switch or blade.
The 16 Gbps SFP+ transceivers have an attached pull tab like the mSFPs. Instead of using the
tool, simply grasp the pull tab and pull straight out to remove the 16 Gbps SFP+ from the
switch or blade. See the illustration for the mSFP transceiver for the basic appearance of the
16 Gbps transceiver.
FIGURE 29 Replacing an optical transceiver
1Bail
