Chassis door removal and replacement
5
Chassis door removal and replacement
The chassis door must be installed to ensure the Brocade DCX 8510-4 meets EMI and other
regulatory certifications. Additionally, if ICL cables are not used, EMI plugs must be inserted in the
ICL cable ports to meet certification standards.
Time and items required
The replacement procedure for the chassis door takes less than five minutes. See Figure 18.
Removing a chassis door
Support the door to prevent it from falling. Pull and remove the door. It will pop off the ball studs.

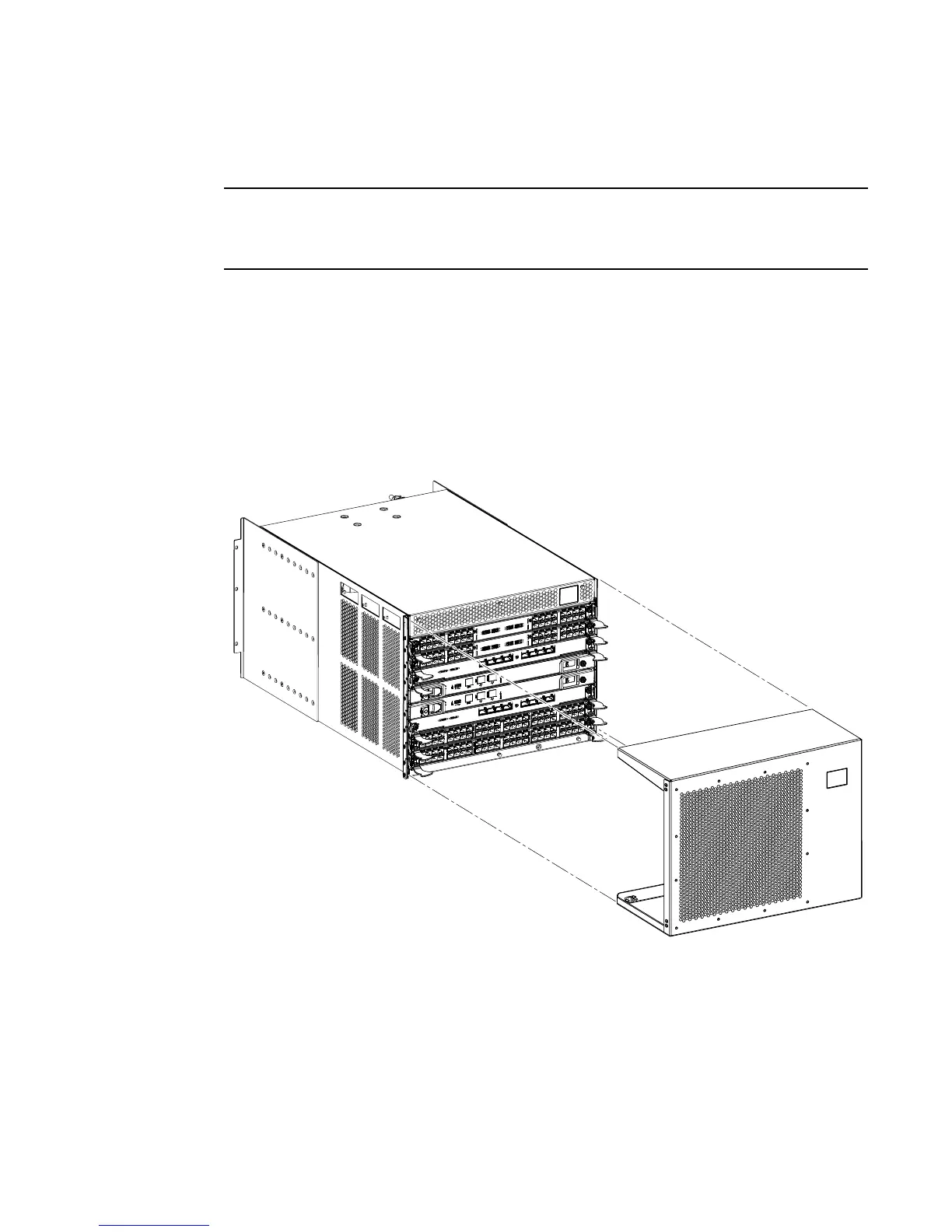

FIGURE 18 Removal and replacement of the chassis door
Replacing a chassis door
Complete the following steps to reinstall the door.
To Next Page
