Power supply removal and replacement
5

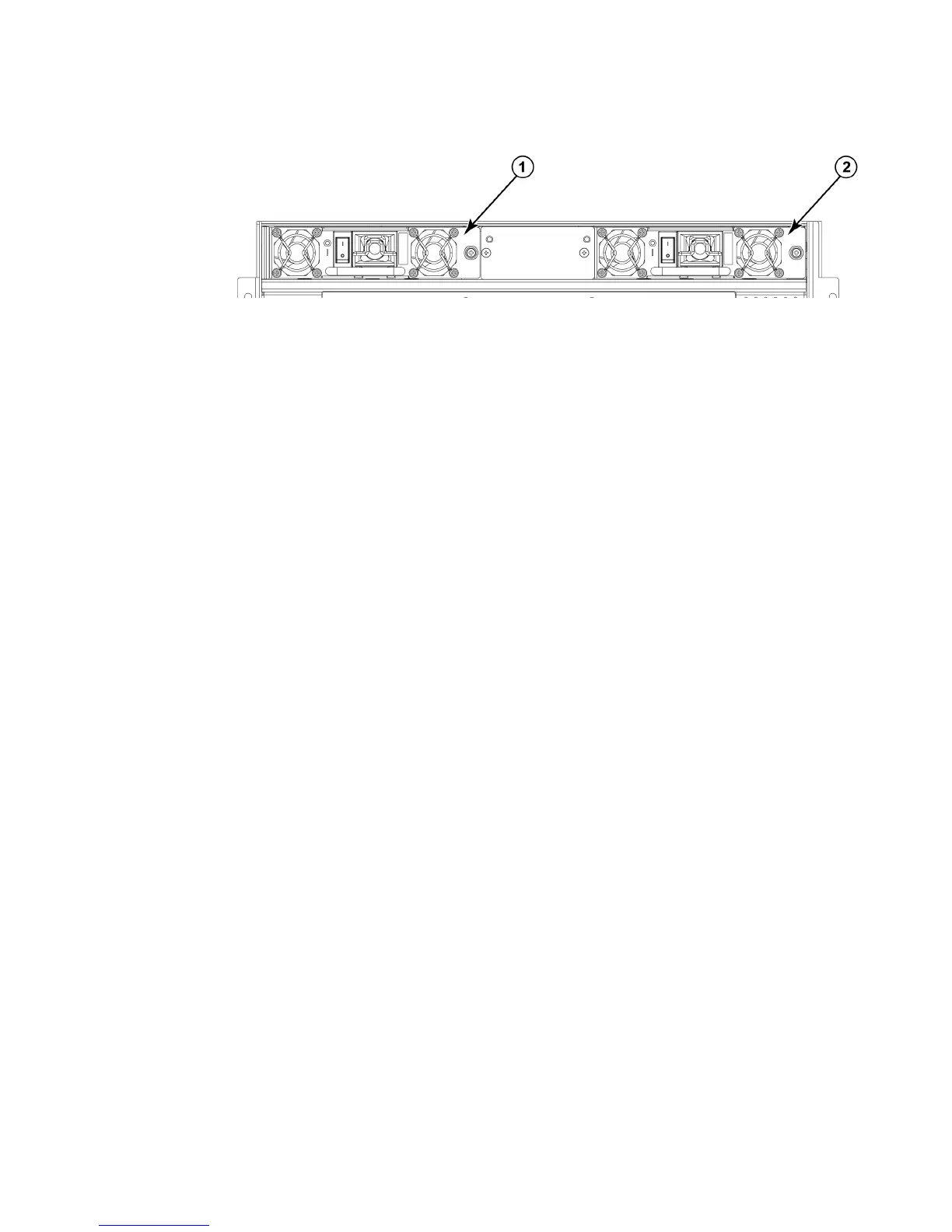

FIGURE 24 Power supply identification
Removing a power supply
Refer to Figure 25 for this procedure.
To remove a power supply, complete the following steps.
1. Perform the appropriate following action based on whether the Brocade DCX 8510-4 is
operating:
• If the Brocade DCX 8510-4 is not operating during the replacement procedure, go to step
2.
• If the Brocade DCX 8510-4 is operating and will continue to operate during the
replacement, check the power LEDs to verify that the minimum number of power supplies
is functioning. See Providing power to the Brocade DCX 8510-4 in the Installation chapter
of your Hardware Reference Manual to check your power requirements.
2. Turn off the power switch.
3. Unlatch the power cord retainer clip.
4. Remove the power cord.
5. Loosen the thumbscrew.
6. Grasp the handle and pull, sliding the power supply from the chassis and supporting the power
supply from beneath as you remove it.
1 Power supply 1 (PS1) 2 Power supply 2 (PS2))
