Power cords
A
Power supply redundancy is key to your installation, so any demand must be met with twice the
capacity. See Table 20 for power supply requirements for specific demand ranges.
In addition to these tables, you can consult the power tables in the latest update of the Fabric OS
Release Notes.
Power cords
The types of power cords provided with the Brocade DCX 8510-4 are specific to the country where it
is installed. For each of the types of power cords in Table 21, the end that connects to the Brocade
DCX 8510-4 has an IEC 60320/C19 cable connector. The AC power receptacles on each power
supply are equipped with IEC 60320/C20 power connectors.
In order to connect to a power strip already installed in a cabinet, the C20, 20A-250V, 12 AWG
power cord is required.
To order a power cord, contact your Brocade DCX 8510-4 supplier.
TABLE 20 Power supply requirements
Demand power supplies @ 110
VAC (nominal)
power supplies @ 220
VAC (nominal)
up to 1000W 2 2
1000W-2000W NA - cannot achieve
redundancy
2
greater than 2000W NA - cannot achieve
redundancy
NA - cannot achieve
redundancy

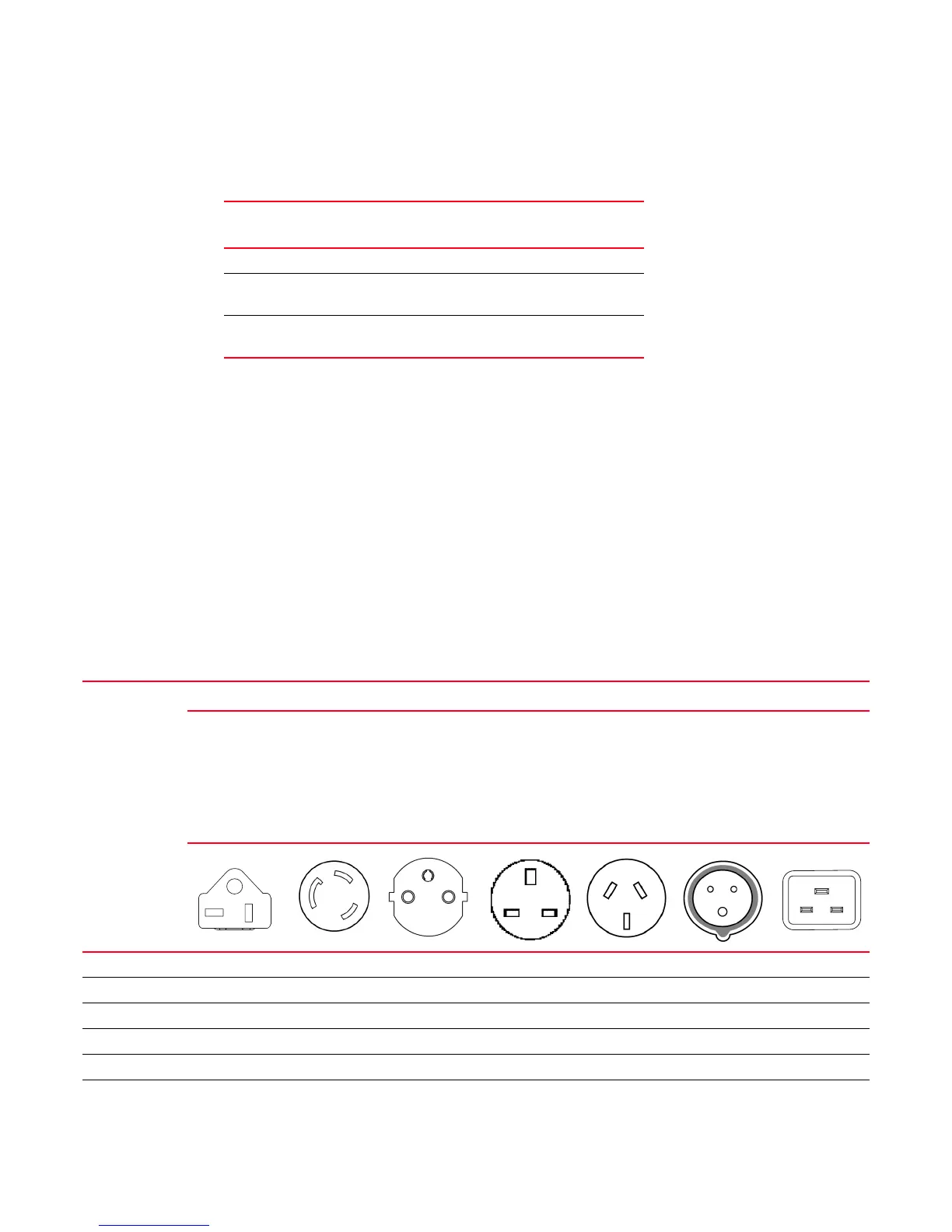

TABLE 21 Power cord types (international)
Country Plug style
NEMA 5-20P
125V only
USA, Canada,
Mexico, other
locations
NEMA L6-20
USA, Canada,
Mexico, other
locations
CEE-7/7
“Schuko”
Continental
Europe
BS-1363A AS 3112
Australia/New
Zealand
IEC-60309
32A-6h, 230V~
C20
20A-250V
12 AWG
connect to
in-cabinet
power strip only
All locations
Argentina XX
Australia XX
Austria X X
Bahrain X X
Belgium X X
Brazil X X X
