Brocade DCX 8510-4 Backbone Hardware Reference Manual 87
53-1002177-06
Transceiver removal and replacement
5
NOTE
It is recommended that the optical cable should be either removed from or inserted into the mSFP
while the transceiver is out of the blade due to the port density.
ATTENTION
mSFP optical transceivers should not be inserted into ports intended for SFP+ transceivers. They will
be faulted on power-up for Fabric OS 7.0.0 and later.
NOTE
Cables for mSFP transceivers should not be used with standard SFP+ transceivers.
CAUTION
The pull tabs are not designed to be bent. Doing so may result in damage to the pull tab.
Removing an mSFP transceiver
For this procedure, refer to Figure 31.
Complete the following steps to remove an mSFP transceiver.
1. Grasp the pull tab firmly and pull the unit out of the port.
2. Remove the cable from the transceiver.

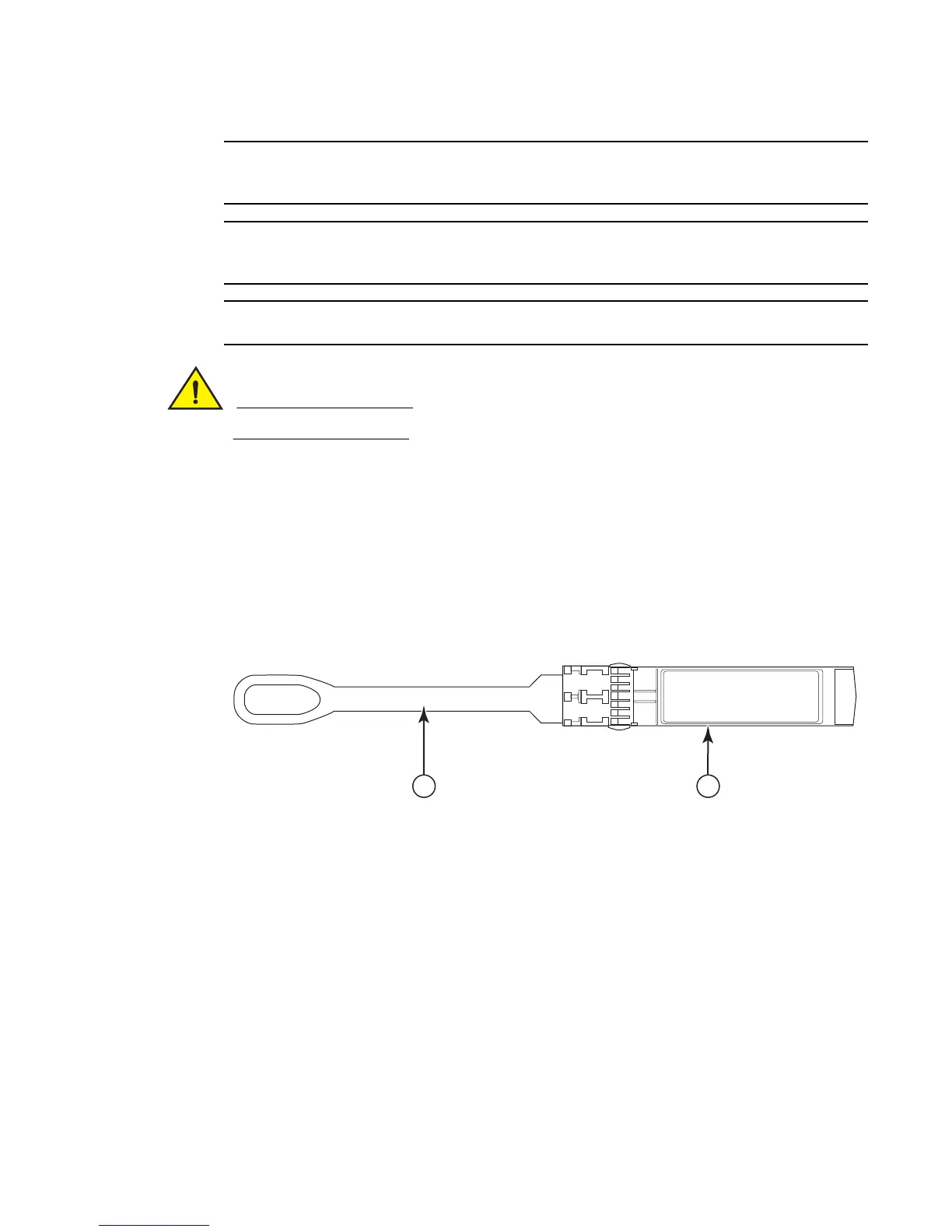

FIGURE 31 Optical mSFP transceiver
Replacing an mSFP transceiver
For this procedure, refer to Figure 31.
Complete the following steps to replace an mSFP transceiver.
1. Insert the cable into the new transceiver until the latching mechanism clicks.
2. Position the optical transceiver so that the key is oriented correctly to the port. Insert the
transceiver into the port until it is firmly seated and the latching mechanism clicks.
1Pull tab 2mSFP transceiver
1 2
