Brocade DCX 8510-4 Backbone Hardware Reference Manual 79
53-1002177-06
Blower assembly removal and replacement
5

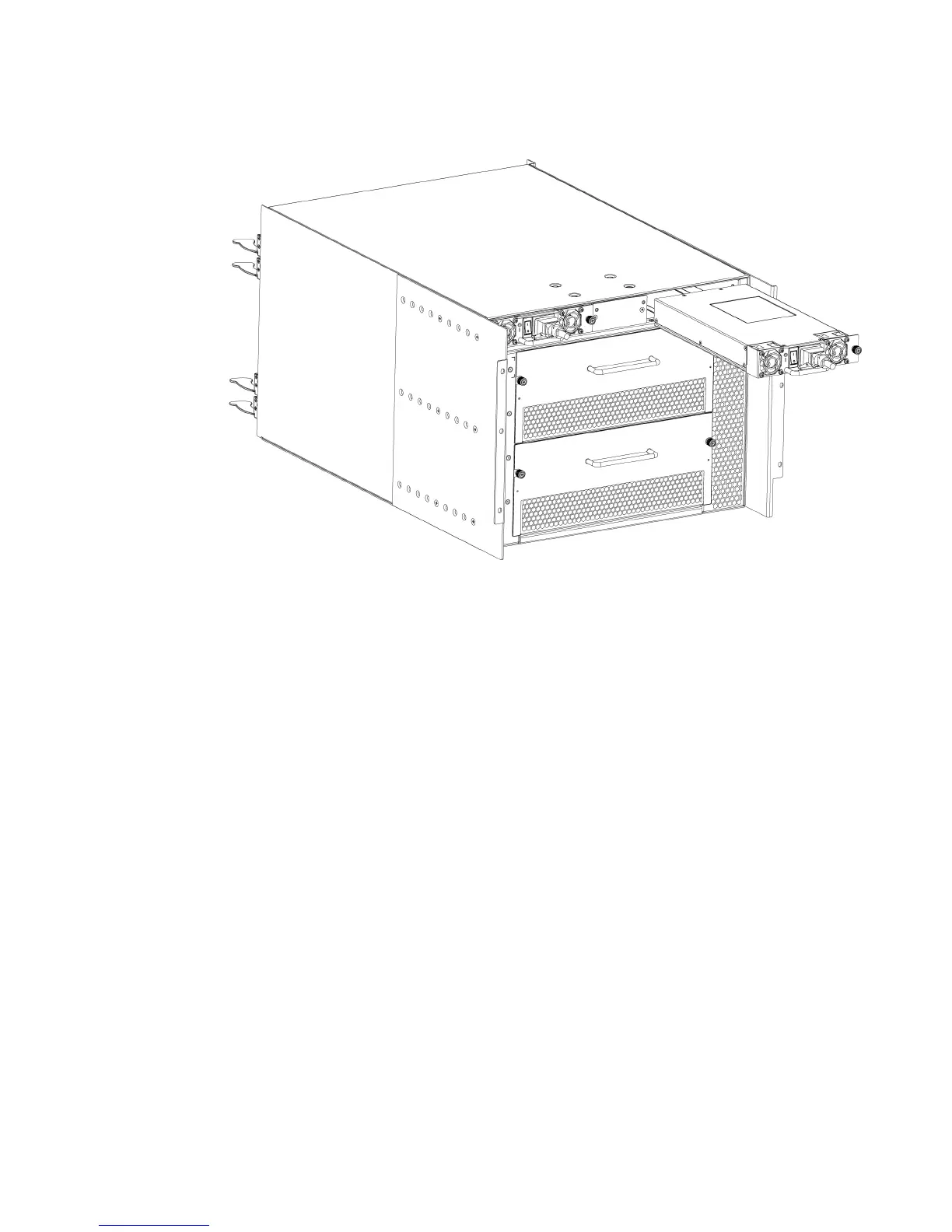

FIGURE 25 Removal and replacement of the power supply
Replacing a power supply
To replace a power supply, complete the following steps.
1. If you are not replacing the power supply, insert a filler panel into the slot.
2. Otherwise, insert the power supply into the slot. Verify that the power supply is seated by gently
pulling on the handle.
3. Tighten the thumb screw.
4. Replace the power cord.
5. Latch the power cord retainer clip.
6. Turn on the power switch.
7. Verify that the power LED on the power supply displays a steady green light.
Blower assembly removal and replacement
Use this procedure to remove and replace a blower assembly.
