Installing a Brocade MLX-32 router
2
3. Adjust the telescoping rails to fit your rack. The rails can accommodate rack depths from 27 -
31 inches.
4. Attach the side rails to the front and back of the rack, using screws appropriate for your rack
type. (You must provide these screws). Refer to Figure 69.
The narrow telescoping ends of the side rails should attached at the back of the rack.

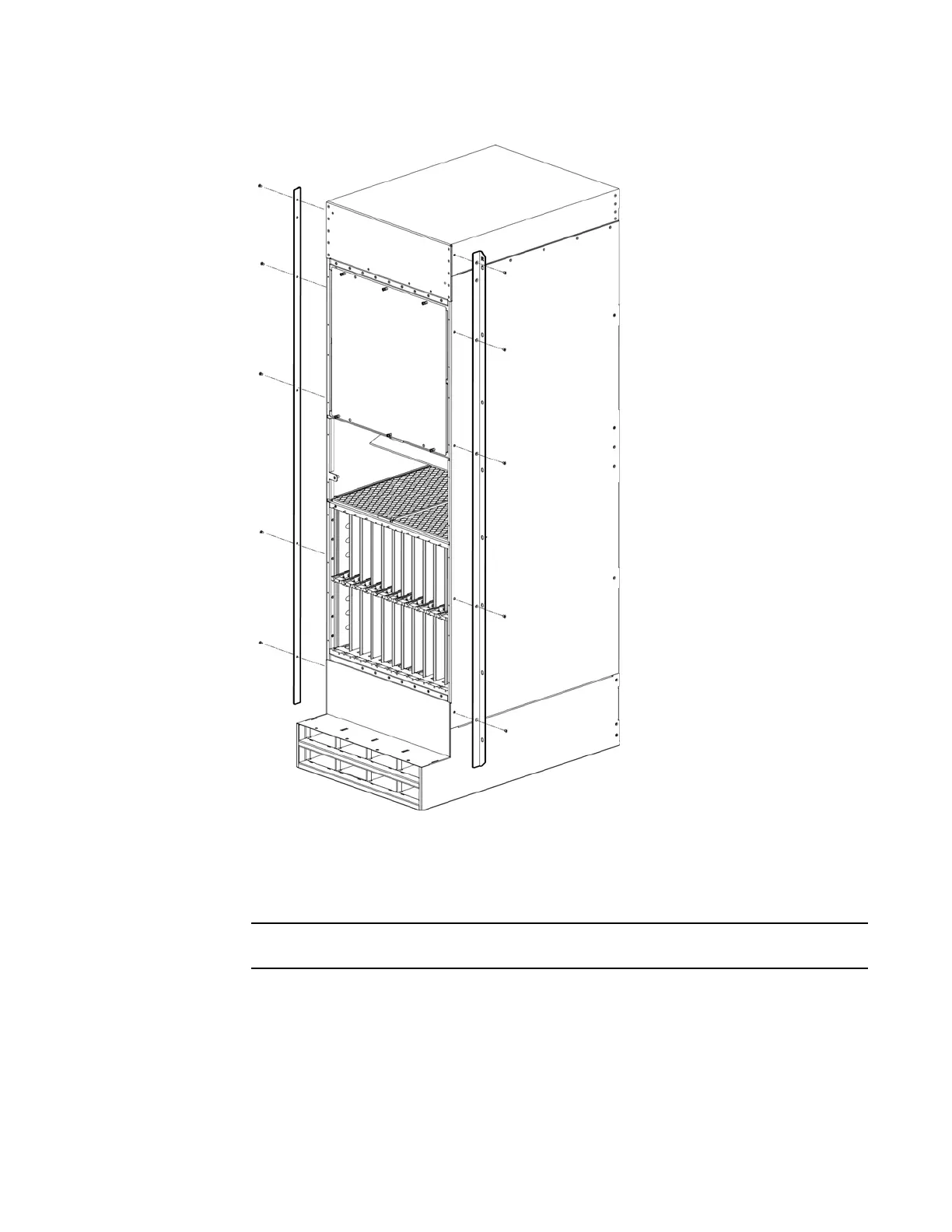

FIGURE 69 Attach the telescoping side rails to the rack.
