Installing a NetIron XMR 4000 router
3
1. Use a #1 Phillips screwdriver to remove the two screws that hold the transparent cover over
the power supply lugs, as shown in Figure 99. Remove the transparent cover.

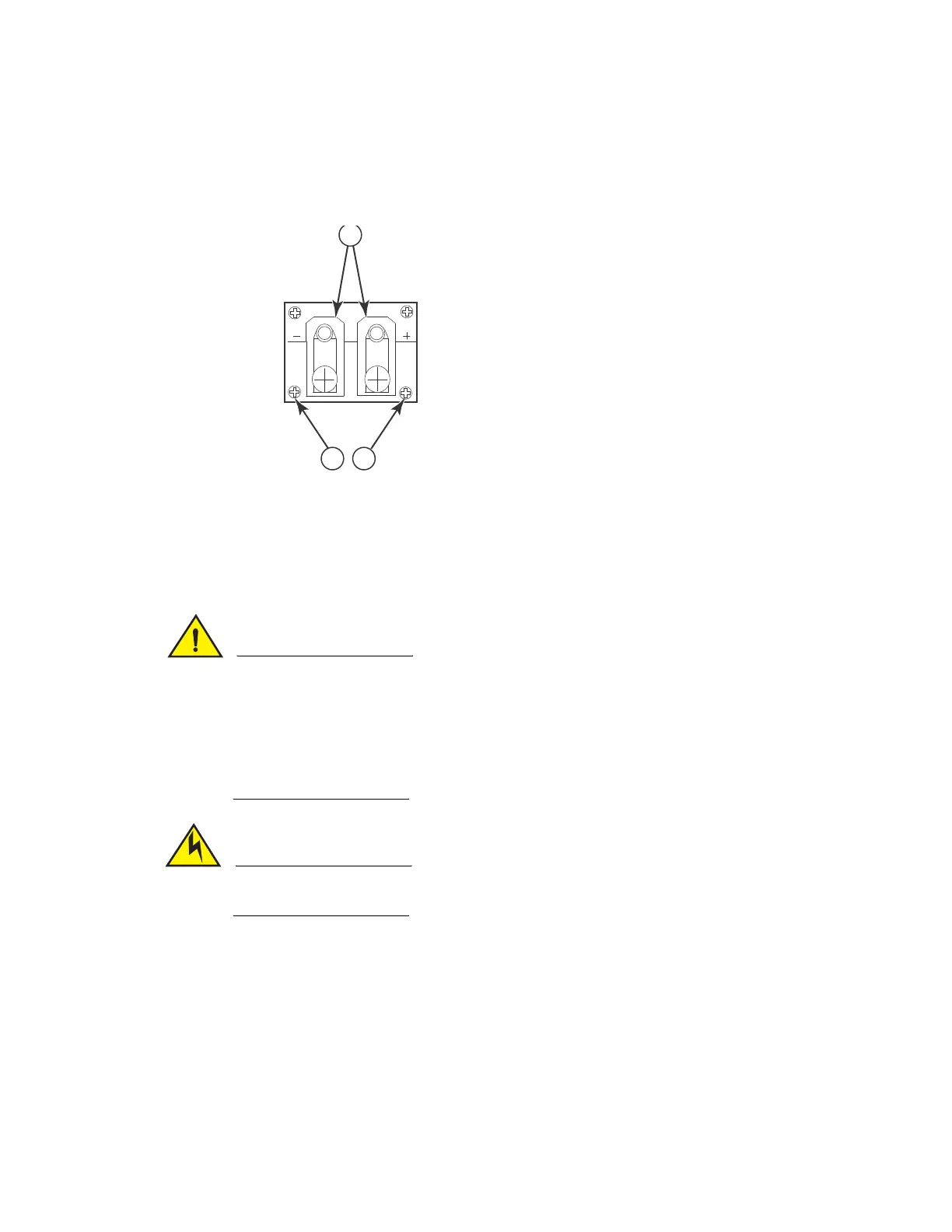

FIGURE 99 The NetIron XMR 4000 DC power supply
2. Use a #2 Phillips screwdriver to remove the power lugs, as shown in Figure 99.
3. Crimp #8 AWG power supply wire into the power lugs and reconnect the lugs to the power
supply unit.
CAUTION
For the NEBS-compliant installation of a NetIron XMR 4000, 8000, and 16000 routers with AC
and DC systems, use a ground wire of at least 6 American Wire Gauge (AWG). The ground wire
should have an agency-approved crimped connector (provided with the device) attached to one
end, with the other end attached to building ground. The connector must be crimped with the
proper tool, allowing it to be connected to both ground screws on the enclosure. Before crimping
the ground wire into the provided ground lug, insure the bare copper wire has been cleaned and
antioxidant is applied to the bare wire.
CAUTION
To ensure adequate bonding when attaching the ground lug, a minimum of 20 PSI of torque is
required to be applied to the mounting hardware used to attach the ground lug.
FIGURE 100 Crimping the power supply wire in the lug
1 Screws holding transparent cover 2 Screws holding power lugs
2
1 1
